Output shaft for BMW 1500-2000CS 2000ti (1968)

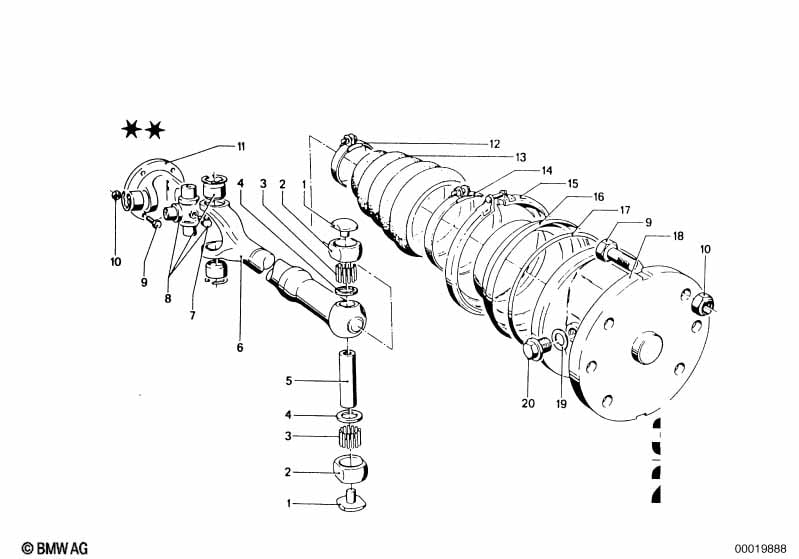

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Driving dog | 4 | 33213614163 | ENDED | Shop at ECS Tuning | |||||
| 02 | Ring | 5 | 33213614161 | ENDED | Shop at ECS Tuning | |||||
| Total 116 X | ||||||||||
| 03 | Bearing needle | A2X15,8 G5 | X | 07119986705 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | 4 | 33213614156 | $10.24 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pin | 2 | 33213614158 | ENDED | Shop at ECS Tuning | |||||
| 06 | Driving dog | 2 | 33213614173 | ENDED | Shop at ECS Tuning | |||||
| 07 | NIpple | CM8X1 | 2 | 07119960640 | ENDED | Shop at ECS Tuning | ||||
| 08 | Swivel joint | "ELBE" | 2 | 33211205310 | $56.09 | ENDED | Shop at ECS Tuning | |||
| 08 | Swivel joint | DU= 28 "GWB" | 2 | 33213614180 | $66.61 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | 24 | 33213628160 | $0.96 | ENDED | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M8-8-ZNS3 | 24 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Flange | "ELBE" | 2 | 33213614167 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L32-38 | 2 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 13 | Cup | "GWB" | 2 | 33213614150 | $25.09 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | L71-78 | 2 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 15 | Ring | "GWB" | 2 | 33213614159 | $10.94 | ENDED | Shop at ECS Tuning | |||
| 16 | Cover | "GWB" | 2 | 33213614154 | ENDED | Shop at ECS Tuning | ||||
| 17 | Ring | "ELBE" | 2 | 33210001709 | $6.05 | Shop at ECS Tuning | ||||
| 19 | Gasket ring | A10X14-AL | 2 | 07119963075 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Screw plug | M10X1,5 | 2 | 07119919155 | ENDED | Shop at ECS Tuning | ||||
