Output shaft for BMW 1500-2000CS 2000 (1971)

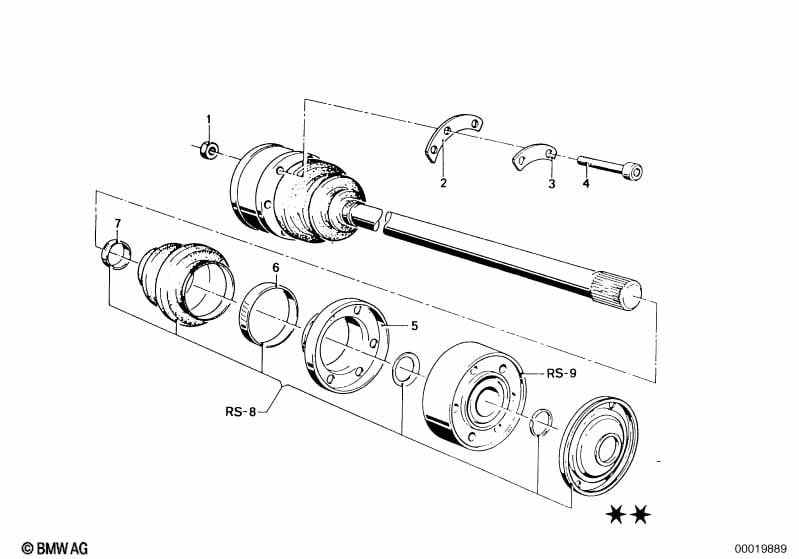

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Self-locking hex nut | M8 | 24 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Plate | 3 LOCH ASYM. | 8 | 33211102222 | $12.61 | Shop at ECS Tuning | ||||
| 03 | Reinforcement | 2 LOCH SYM. | 12 | 33211207094 | $1.43 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M8X55 12.9 | 24 | 07119919685 | $3.46 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M8X60 | 24 | 07119919989 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Cap | 4 | 33211205828 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 4 | 33211209496 | $5.58 | ENDED | Shop at ECS Tuning | ||||
| 08 | Repair kit bellows | 4 | 33219067911 | $58.86 | ENDED | Shop at ECS Tuning | ||||
| 09 | Constant velocity joint | 4 | 33211205746 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
