Rear axle support/wheel suspension for BMW 1502-2002tii 1602 (1971)

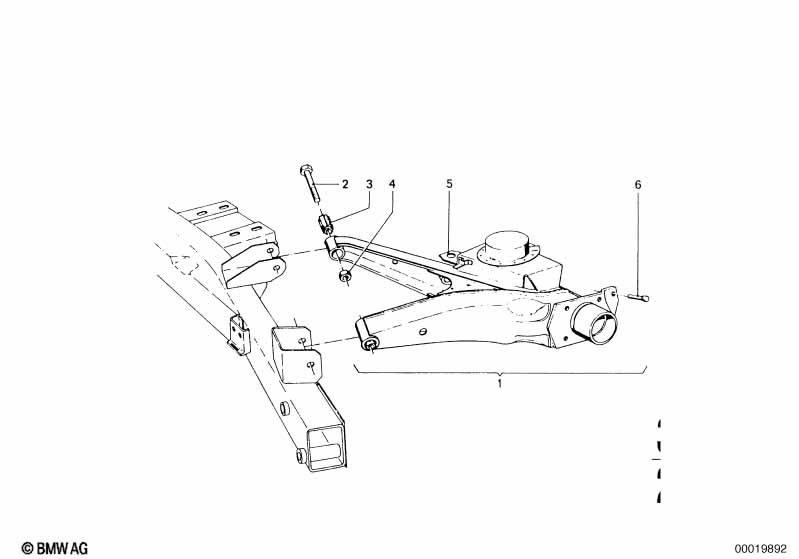

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trailing arm, left | 1 | 03/1966 | 07/1977 | 33321114113 | $667.91 | Shop at ECS Tuning | |||
| 01 | Trailing arm, right | 1 | 03/1966 | 07/1977 | 33321114114 | $667.91 | Shop at ECS Tuning | |||
| 02 | Hex bolt | M12X1.5X90 | 4 | 07119914667 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Set rubber mounting | D=30MM | 2 | 03/1966 | 07/1977 | 33329061945 | $26.77 | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Rear axle carrier | KURZHALS | X | 03/1966 | 07/1977 | 33311102225 | $673.55 | ENDED | Shop at ECS Tuning | |
| 03 | Rubber Mounting | 4 | 03/1966 | 04/1972 | 33323055506 | $27.08 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Rear axle carrier | LANGHALS | X | 03/1966 | 04/1972 | 33313428001 | ENDED | Shop at ECS Tuning | ||
| 04 | Self-locking hex nut | M12X1.5-05 ZNS3 | 4 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 05 | Bow | 2 | 33553628130 | $12.45 | Shop at ECS Tuning | |||||
| 06 | Knurled bolt | M10X58 | 2 | 33323428161 | $4.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
