Side shaft/wheel bearings for BMW 1500-2000CS 2000CS (1970)

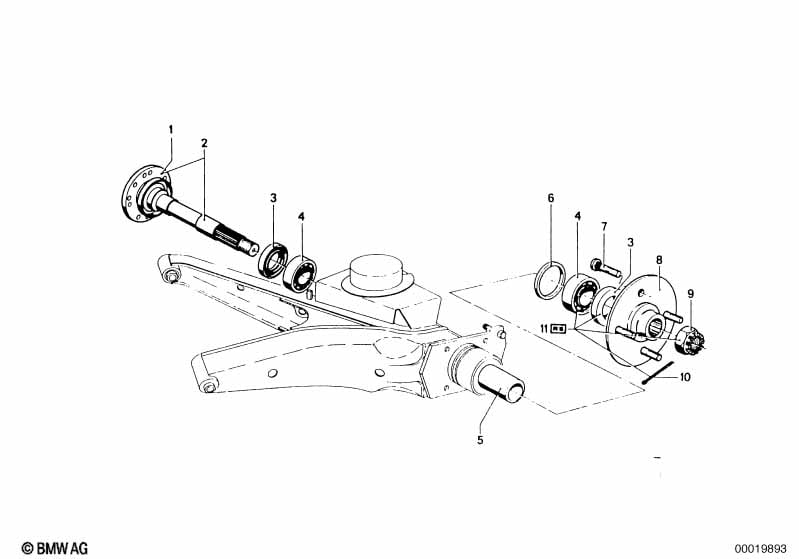

This Side shaft/wheel bearings technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dustcover plate | 71MM | 2 | 33413404120 | $8.08 | Shop at ECS Tuning | ||||
| 02 | Side shaft | 2 | 02/1962 | 01/1972 | 33411116775 | $256.83 | Shop at ECS Tuning | |||
| 03 | Shaft seal | 4 | 02/1962 | 01/1972 | 33411085077 | $17.54 | Shop at ECS Tuning | |||
| 04 | Grooved ball bearing | 30X62X16 | 4 | 02/1962 | 01/1972 | 33411122131 | $28.44 | Shop at ECS Tuning | ||
| 05 | Spacer sleeve | 2 | 02/1962 | 06/1975 | 33411111094 | $38.86 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 0,240MM | X | 02/1962 | 01/1972 | 33413604245 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 0,280MM | X | 02/1962 | 01/1972 | 33413604246 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 0,320MM | X | 02/1962 | 01/1972 | 33413604247 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 0,380MM | X | 02/1962 | 01/1972 | 33413604248 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 0,500MM | X | 02/1962 | 01/1972 | 33413604249 | ENDED | Shop at ECS Tuning | ||
| 07 | Knurled bolt | M12X1,5X43 | 8 | 33413604178 | $3.29 | Shop at ECS Tuning | ||||
| 08 | Drive flange | 2 | 02/1962 | 06/1975 | 33413704135 | $284.24 | Shop at ECS Tuning | |||
| 09 | Crown nut | M24X1,5 | 2 | 33413404150 | $4.97 | ENDED | Shop at ECS Tuning | |||

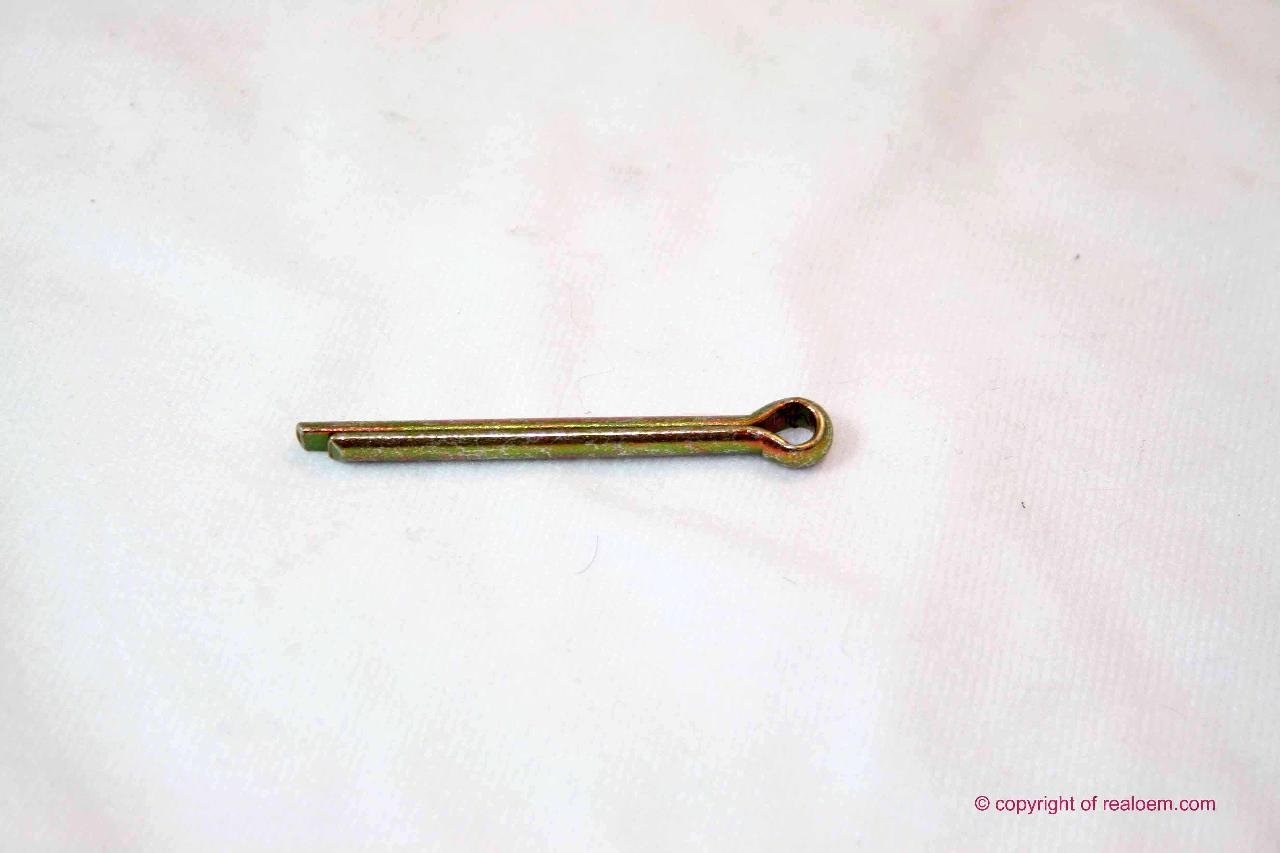

| 10 | Split pin | 5X45 | 2 | 07119945270 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Wheel bearing repair kit | 2 | 02/1962 | 01/1972 | 33411107443 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
