Rear coil spring for BMW 1502-2002tii 2000 (1973)

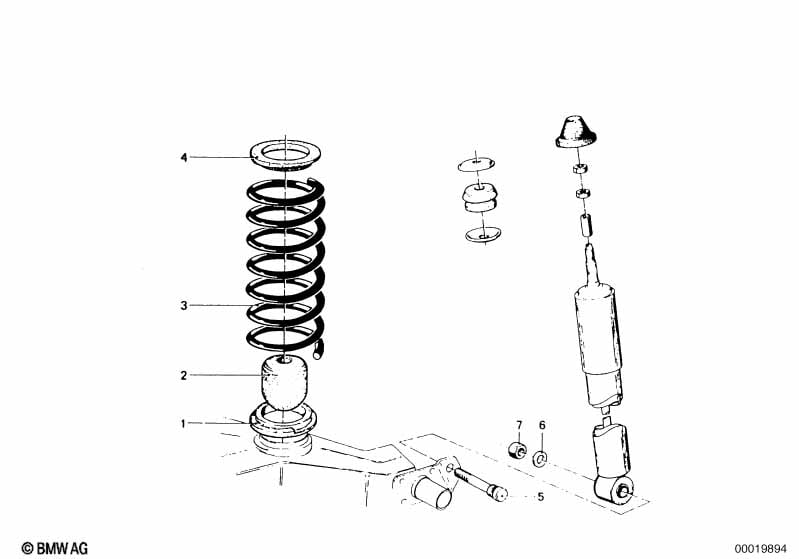

This Rear coil spring technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Damper ring | UNTEN | 2 | 33533450105 | $20.44 | Shop at ECS Tuning | ||||
| 02 | Absorber | 2 | 33531104073 | $31.29 | Shop at ECS Tuning | |||||
| 03 | Coil spring | ROT HD | 2 | 33531112100 | $133.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Coil spring | WEISS HD | 2 | 33531112101 | $133.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Coil spring | GRUEN | 2 | 03/1966 | 07/1977 | 33531112136 | $133.87 | ENDED | Shop at ECS Tuning | |
| 04 | Damper ring | OBEN 28MM | 2 | 33533450107 | $23.45 | Shop at ECS Tuning | ||||
| 04 | Damper ring | OBEN 33MM | 2 | 33533450108 | ENDED | Shop at ECS Tuning | ||||
| 04 | Damper ring | OBEN 37MM | 2 | 33533450106 | $20.67 | Shop at ECS Tuning | ||||
| 05 | Knurled bolt | M10X58 | 2 | 33323428161 | $4.53 | Shop at ECS Tuning | ||||
| 06 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2000 Rear coil spring?
- This technical diagram illustrates the Rear coil spring within the Rear Axle group for the 1502-2002tii 2000 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Damper ring (Part #33533450105).
- Which models use the hardware listed in this Rear coil spring?
- The hardware and components featured in the Rear coil spring are specific to the 1502-2002tii 2000 produced during 1973. These technical specifications ensure that parts like the Damper ring (33533450105) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear coil spring assembly?
- Each item in the Rear coil spring corresponds to the numbered list below the illustration. For the 1502-2002tii 2000, you can identify the Damper ring by locating its position on the schematic, which then links to the official BMW part number 33533450105 for the Rear Axle section.
