Coil spring/guide support/attach.parts for BMW 1502-2002tii 2002 (1971)

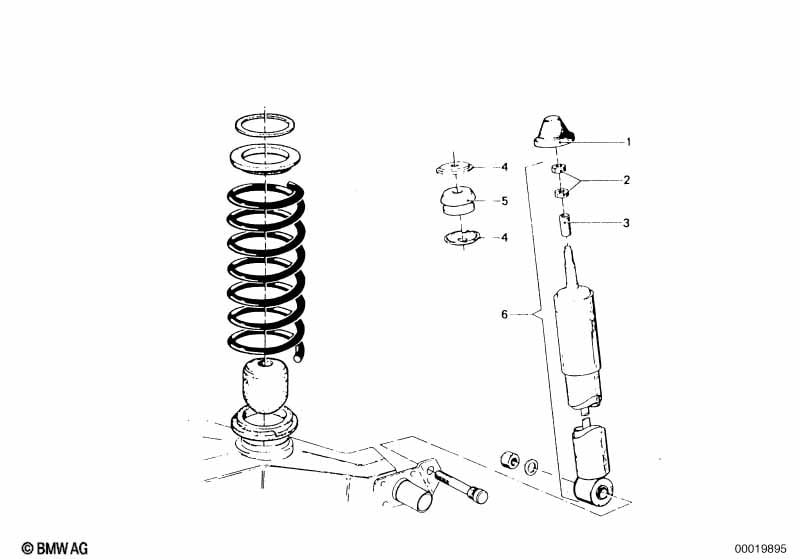

This Coil spring/guide support/attach.parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection cap | 2 | 33523650106 | $8.16 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M10X1 | 4 | 33521103698 | $4.95 | Shop at ECS Tuning | ||||
| 03 | Bush | 13X10X28 | 4 | 33521105047 | $6.92 | Shop at ECS Tuning | ||||
| 04 | Plate | 48MM | 4 | 33521111953 | $2.79 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 2 | 33523450101 | Shop at ECS Tuning | ||||||
| 06 | Shock absorber, rear | BOGE | 2 | 33521113773 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shock absorber, rear | F&S | 2 | 03/1966 | 07/1977 | 33521103170 | $165.86 | Shop at ECS Tuning | ||
| 06 | Shock absorber, rear | BILSTEIN | 2 | 33521114383 | $244.51 | +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Coil spring/guide support/attach.parts?
- This technical diagram illustrates the Coil spring/guide support/attach.parts within the Rear Axle group for the 1502-2002tii 2002 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Protection cap (Part #33523650106).
- Which models use the hardware listed in this Coil spring/guide support/attach.parts?
- The hardware and components featured in the Coil spring/guide support/attach.parts are specific to the 1502-2002tii 2002 produced during 1971. These technical specifications ensure that parts like the Protection cap (33523650106) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coil spring/guide support/attach.parts assembly?
- Each item in the Coil spring/guide support/attach.parts corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Protection cap by locating its position on the schematic, which then links to the official BMW part number 33523650106 for the Rear Axle section.
