Crowngear set/differential case for BMW 1500-2000CS 1800 (1968)

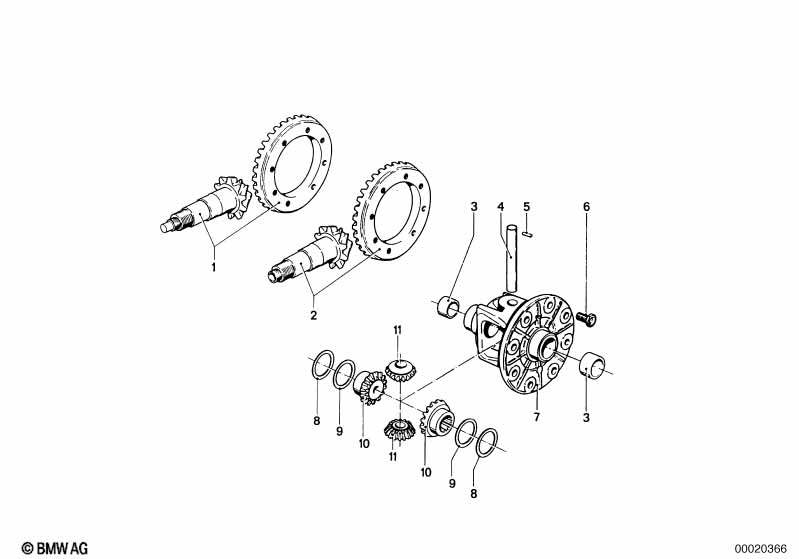

This Crowngear set/differential case technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=41:10=4,10 | 1 | 09/1963 | 01/1972 | 33123710010 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=41:10=4,10 | 1 | 09/1963 | 01/1972 | 33121202488 | ENDED | Shop at ECS Tuning | ||
| 03 | Spacer tube | 2 | 33123704169 | ENDED | Shop at ECS Tuning | |||||
| 05 | Roll pin | 5X40 | 1 | 07119941377 | $0.22 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M10X24 | 8 | 33113704165 | ENDED | Shop at ECS Tuning | ||||
| 07 | Differential case | 1 | 33113704121 | ENDED | Shop at ECS Tuning | |||||
| 08 | Diaphragm spring | 2 | 33133704218 | ENDED | Shop at ECS Tuning | |||||
| 09 | Shim | 1,400MM | X | 33133704260 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 1,500MM | X | 33133704261 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 1,600MM | X | 33133704262 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 1,700MM | X | 33133704263 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 1,800MM | X | 33133704264 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 1,900MM | X | 33133704265 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 2,000MM | X | 33133704266 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 2,100MM | X | 33133704267 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 2,200MM | X | 33133704268 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 2,300MM | X | 33133704269 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 2,400MM | X | 33133704270 | ENDED | Shop at ECS Tuning | ||||
| 10 | Side gear | 2 | 33133704130 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bevel gear | 2 | 33133704132 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
