Differential-crown wheel set for BMW 1500-2000CS 1800 (1968)

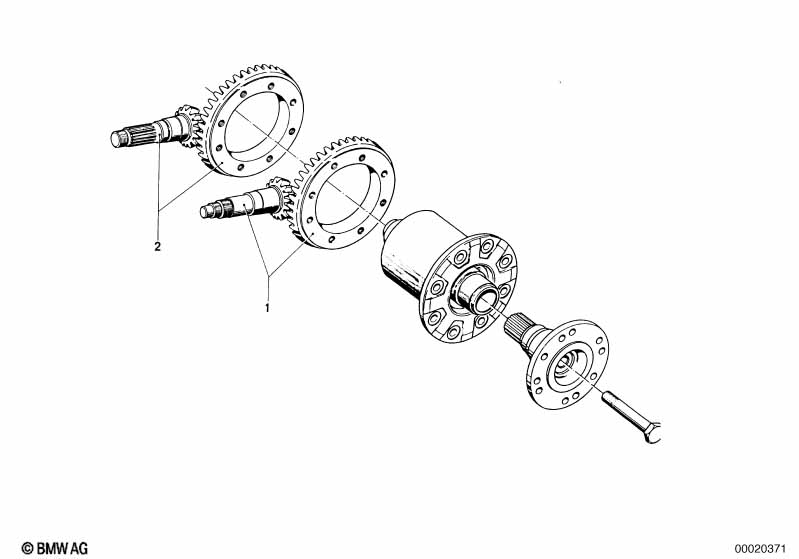

This Differential-crown wheel set technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=43:9=4,78 | X | 33123710016 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=41:7=5,85 | X | 33123710017 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=41:10=4,10 | X | 09/1963 | 01/1972 | 33123710010 | ENDED | Shop at ECS Tuning | ||
| 01 | Crowngear set | I=43:11=3,91 | X | 09/1963 | 01/1972 | 33123710011 | ENDED | Shop at ECS Tuning | ||
| 01 | Crowngear set | I=40:9=4,44 | X | 09/1963 | 01/1972 | 33123710015 | ENDED | Shop at ECS Tuning | ||
| 01 | Crowngear set | I=37:7=5,29 | X | 09/1963 | 01/1972 | 33123710018 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=40:11=3,64 | X | 09/1965 | 01/1972 | 33121200222 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=40:9=4,44 | X | 09/1965 | 01/1972 | 33121200831 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=37:7=5,29 | X | 09/1965 | 01/1972 | 33121200833 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=41:7=5,85 | X | 09/1965 | 01/1972 | 33121200835 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=43:9=4,78 | X | 09/1965 | 01/1972 | 33121200837 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=41:10=4,10 | X | 09/1965 | 01/1972 | 33121202488 | ENDED | Shop at ECS Tuning | ||
| 02 | Crowngear set | I=43:11=3,91 | X | 09/1965 | 01/1972 | 33121202489 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Differential-crown wheel set?
- This technical diagram illustrates the Differential-crown wheel set within the Rear Axle group for the 1500-2000CS 1800 produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Crowngear set (Part #33123710016).
- Which models use the hardware listed in this Differential-crown wheel set?
- The hardware and components featured in the Differential-crown wheel set are specific to the 1500-2000CS 1800 produced during 1968. These technical specifications ensure that parts like the Crowngear set (33123710016) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Differential-crown wheel set assembly?
- Each item in the Differential-crown wheel set corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Crowngear set by locating its position on the schematic, which then links to the official BMW part number 33123710016 for the Rear Axle section.
