Trailing arm for BMW 1500-2000CS 2000CS (1970)

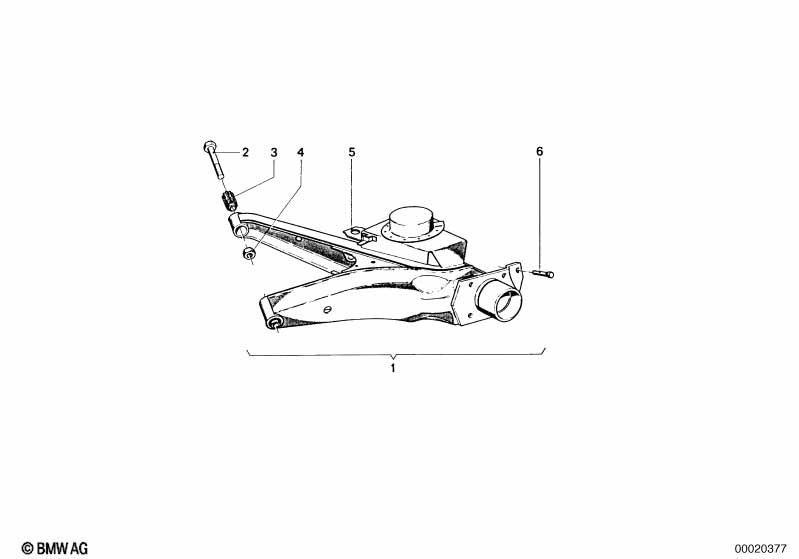

This Trailing arm technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trailing arm, left | 1 | 12/1964 | 01/1972 | 33321103748 | ENDED | Shop at ECS Tuning | |||
| 01 | Trailing arm, right | 1 | 12/1964 | 01/1972 | 33321103749 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M12X1.5X90 | 4 | 07119914667 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Set rubber mounting | D=30MM | 2 | 12/1964 | 01/1972 | 33329061945 | $26.77 | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Trailing arm, left | X | 12/1964 | 01/1972 | 33321103748 | ENDED | Shop at ECS Tuning | |||
| -- | Trailing arm, right | X | 12/1964 | 01/1972 | 33321103749 | ENDED | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M12X1.5-05 ZNS3 | 4 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 05 | Bow | 2 | 33553628130 | $12.45 | Shop at ECS Tuning | |||||
| 06 | Knurled bolt | M12X74,8 | 2 | 33321103714 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000CS Trailing arm?
- This technical diagram illustrates the Trailing arm within the Rear Axle group for the 1500-2000CS 2000CS produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Trailing arm, left (Part #33321103748).
- Which models use the hardware listed in this Trailing arm?
- The hardware and components featured in the Trailing arm are specific to the 1500-2000CS 2000CS produced during 1970. These technical specifications ensure that parts like the Trailing arm, left (33321103748) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trailing arm assembly?
- Each item in the Trailing arm corresponds to the numbered list below the illustration. For the 1500-2000CS 2000CS, you can identify the Trailing arm, left by locating its position on the schematic, which then links to the official BMW part number 33321103748 for the Rear Axle section.
