Rear coil spring for BMW 1500-2000CS 1800 (1971)

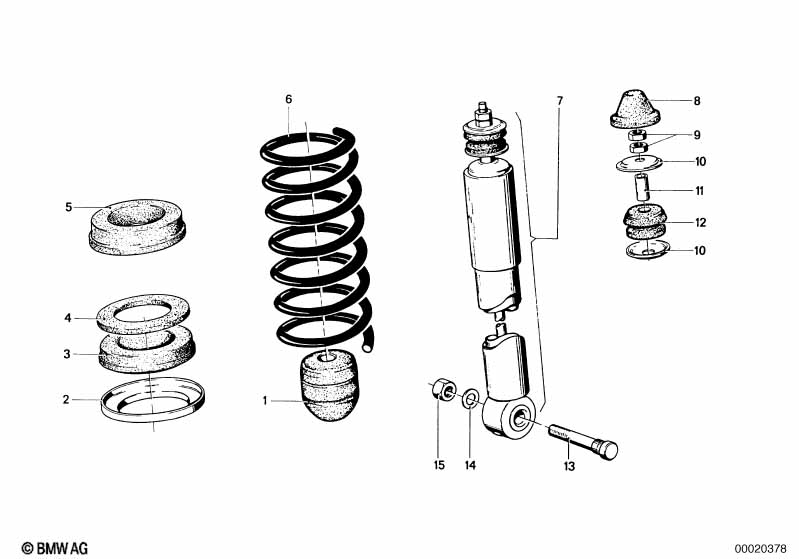

This Rear coil spring technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Absorber | 2 | 33531104073 | $31.29 | Shop at ECS Tuning | |||||
| 04 | Damper ring | 2 | 33533650107 | ENDED | Shop at ECS Tuning | |||||
| Early version | ||||||||||
| 08 | Coil spring | 2 | 33531112119 | $195.30 | ENDED | Shop at ECS Tuning | ||||
| Late version | ||||||||||
| 08 | Coil spring | HINTEN HD | 2 | 33531112121 | $133.92 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear coil spring | ROT | 2 | 33531112124 | $171.86 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex nut | M10X1 | 4 | 33521103698 | $4.95 | Shop at ECS Tuning | ||||
| 10 | Plate | 48MM | 4 | 33521111953 | $2.79 | Shop at ECS Tuning | ||||
| 11 | Bush | 13X10X28 | 2 | 33521105047 | $6.92 | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 2 | 33523650101 | ENDED | Shop at ECS Tuning | |||||
| 13 | Knurled bolt | M12X74,8 | 2 | 33321103714 | ENDED | Shop at ECS Tuning | ||||
| 14 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Rear coil spring?
- This technical diagram illustrates the Rear coil spring within the Rear Axle group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Absorber (Part #33531104073).
- Which models use the hardware listed in this Rear coil spring?
- The hardware and components featured in the Rear coil spring are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Absorber (33531104073) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear coil spring assembly?
- Each item in the Rear coil spring corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Absorber by locating its position on the schematic, which then links to the official BMW part number 33531104073 for the Rear Axle section.
