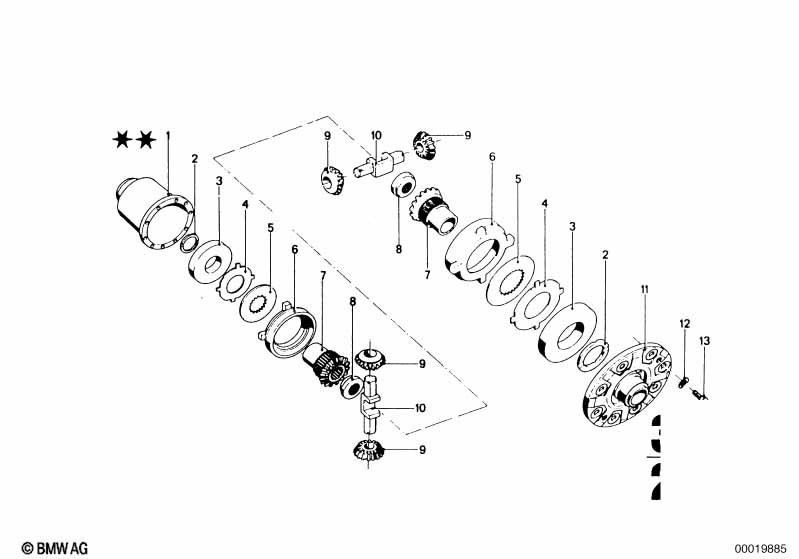

Limited slip diff.unit-single parts for BMW 1500-2000CS 2000 (1971)

This Limited slip diff.unit-single parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.

Limited slip diff.unit-single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
-- Limited slip diff.unit X 03/1966 07/1977 33143604050 $168.52 ENDED Shop at ECS Tuning
02 Shim 4,730MM X 33121201677 ENDED Shop at ECS Tuning
not suitable for
02 Stop disk 2,40MM X 33141201911 Shop at ECS Tuning
not suitable for
02 Stop disk 2,35MM X 33141201912 ENDED Shop at ECS Tuning
not suitable for
02 Stop disk 2,30MM X 33141201913 ENDED Shop at ECS Tuning
not suitable for
02 Stop disk 2,25MM X 33141201914 ENDED Shop at ECS Tuning
not suitable for
02 Stop disk 2,20MM X 33141201915 ENDED Shop at ECS Tuning
not suitable for
02 Stop disk 2,15MM X 33141201916 Shop at ECS Tuning
not suitable for
02 Stop disk 2,10MM X 33141201917 ENDED Shop at ECS Tuning
not suitable for
02 Stop disk 2,05MM X 33141201918 Shop at ECS Tuning
not suitable for
02 Stop disk 2,00MM X 33141205676 $44.08 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
03 Ring 2 33141201920 $18.77 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
04 Outer disc 1,90MM 2 33141203803 $35.00 Shop at ECS Tuning
04 Outer disc 2,00MM 2 33141203804 $35.00 ENDED Shop at ECS Tuning
not suitable for
04 Outer disc 2,10MM 2 33141203805 $35.42 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
05 Inner disc 2 33141203806 $56.47 Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
06 Compression ring 2 33141204153 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
07 Side gear 2 33141201925 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
08 Threaded washer 2 33141201928 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
09 Bevel gear 4 33141203808 $85.77 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
10 Bevel mate shaft 2 33141204154 $110.48 ENDED Shop at ECS Tuning
not suitable for
-- Limited slip diff.unit X 33143604050 $168.52 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
