Rear-axle-drive parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

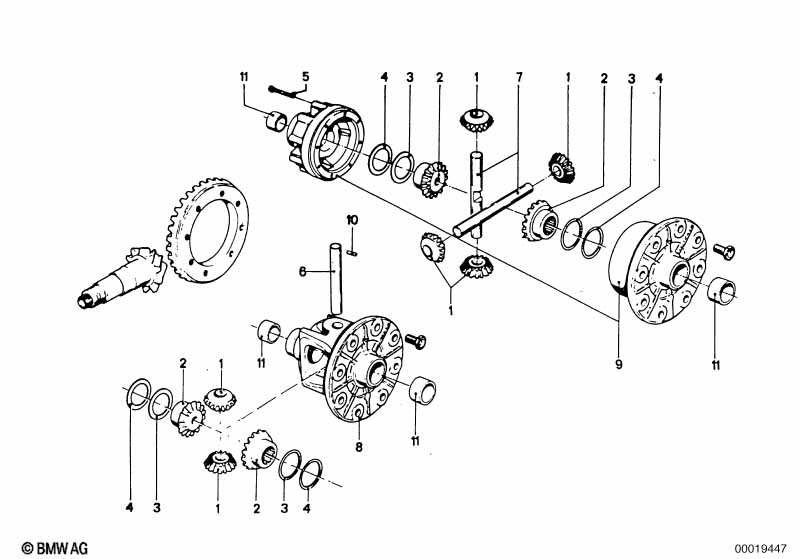

This Rear-axle-drive parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bevel gear | 4 | 33133704132 | ENDED | Shop at ECS Tuning | |||||
| 02 | Side gear | 2 | 33133704130 | ENDED | Shop at ECS Tuning | |||||
| 03 | Shim | 1,400MM | X | 33133704260 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1,500MM | X | 33133704261 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1,600MM | X | 33133704262 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1,700MM | X | 33133704263 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1,800MM | X | 33133704264 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1,900MM | X | 33133704265 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2,000MM | X | 33133704266 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2,100MM | X | 33133704267 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2,200MM | X | 33133704268 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2,300MM | X | 33133704269 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2,400MM | X | 33133704270 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 2,500MM | X | 33133704271 | ENDED | Shop at ECS Tuning | ||||
| 04 | Diaphragm spring | 2 | 33133704218 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X55-8.8 | 8 | 04/1971 | 11/1975 | 07119902957 | $5.27 | Shop at ECS Tuning | ||
| 07 | Bevel gear shaft | 2 | 04/1971 | 11/1975 | 33131202874 | ENDED | Shop at ECS Tuning | |||
| 09 | Differential case | 1 | 04/1971 | 11/1975 | 33131202948 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer tube | 2 | 33123704169 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
