Limited slip diff.unit-single parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

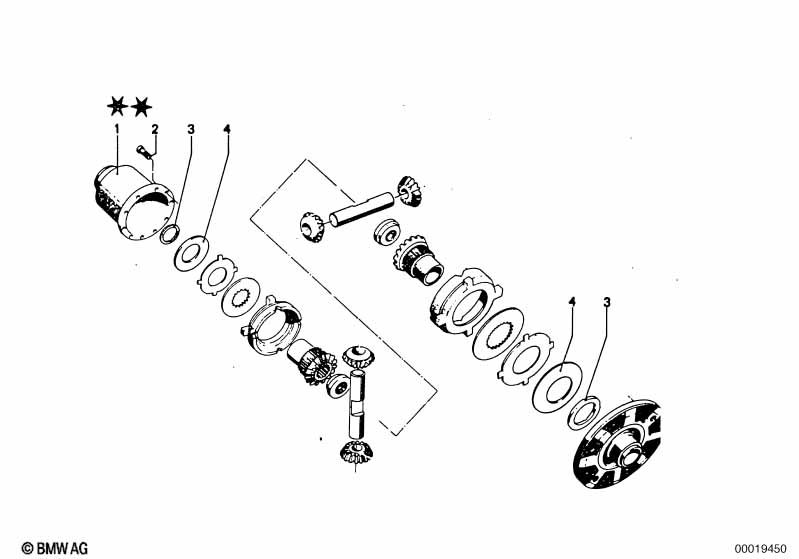

This Limited slip diff.unit-single parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Differential housing | 1 | 33141203802 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Limited slip diff.unit | 75% | 1 | 33141203603 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M6X10 | 2 | 33141205531 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Limited slip diff.unit | 75% | 2 | 33141203603 | ENDED | Shop at ECS Tuning | ||||
| 03 | Stop disk | 2,20MM | 2 | 33141201931 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 2,15MM | 2 | 33141201932 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 2,10MM | 2 | 33141201933 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 2,05MM | 2 | 33141201934 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 2,00MM | 2 | 33141201935 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 1,95MM | 2 | 33141201936 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 1,90MM | 2 | 33141201937 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 1,85MM | 2 | 33141201938 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 1,80MM | 2 | 33141201939 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 2,25MM | 2 | 33141203791 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Stop disk | 2,30MM | 2 | 33141203792 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Limited slip diff.unit | 75% | 2 | 33141203603 | ENDED | Shop at ECS Tuning | ||||
| 04 | Diaphragm spring | 2 | 33141204367 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Limited slip diff.unit | 75% | 2 | 33141203603 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
