Rear-axle-drive parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

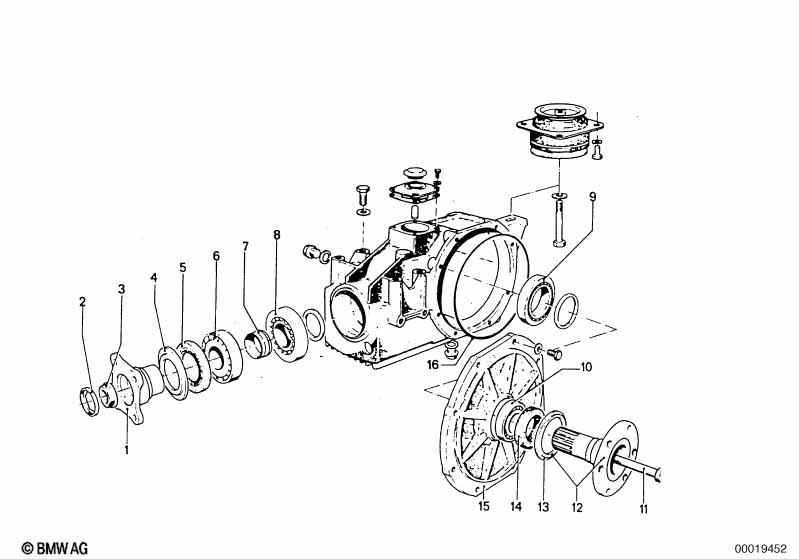

This Rear-axle-drive parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive flange | 1 | 33121200282 | ENDED | Shop at ECS Tuning | |||||
| 02 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 03 | Collar nut | M20X1,5 | 1 | 33121200258 | $8.56 | Shop at ECS Tuning | ||||
| 04 | Dustcover plate | 81MM | 1 | 33121200284 | $2.38 | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 06 | Tapered roller bearing | 31,7X73,0X29,3 | 1 | 33121204312 | Shop at ECS Tuning | |||||
| 07 | Clamping bush | 1 | 33121744368 | $9.14 | Shop at ECS Tuning | |||||
| 08 | Tapered roller bearing | 1 | 33121204315 | Shop at ECS Tuning | ||||||
| 09 | Tapered roller bearing | 2 | 33131204568 | Shop at ECS Tuning | ||||||
| 10 | Grooved ball bearing | 160 06 | 2 | 07119981720 | ENDED | Shop at ECS Tuning | ||||
| Only together with locking differential | ||||||||||
| 11 | Hex bolt | M12X1,5X95 | 2 | 04/1971 | 10/1973 | 07119914669 | $5.38 | ENDED | Shop at ECS Tuning | |
| 12 | Drive flange output | 2 | 04/1971 | 11/1975 | 33131202701 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M10X60 | X | 04/1971 | 11/1975 | 07119919679 | $1.90 | Shop at ECS Tuning | ||
| 13 | Dustcover plate | 61MM | 2 | 33413704139 | $1.02 | ENDED | Shop at ECS Tuning | |||
| 14 | Shaft seal | 2 | 33121210295 | Shop at ECS Tuning | ||||||
| 15 | Housing cover | 1 | 33111206165 | ENDED | Shop at ECS Tuning | |||||
| 16 | O-ring | 1 | 33113704163 | $5.14 | Shop at ECS Tuning | |||||
| 16 | O-ring | 1 | 33111204119 | ENDED | Shop at ECS Tuning | |||||
