Output shaft for BMW 2.5CS-3.0CSL 3.0CS (1973)

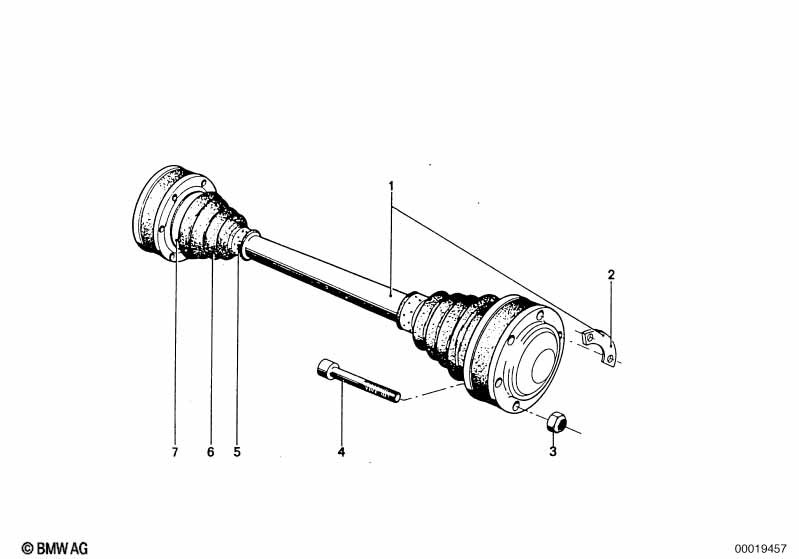

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output shaft | 2 | 33211102423 | ENDED | Shop at ECS Tuning | |||||
| 01 | Exch. output shaft | 2 | 33211105438 | $477.85 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reinforcement | D=10,5MM/ZNS3 | 12 | 33207572719 | $2.25 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M10-10 ZNS3 | 24 | 33326768900 | $0.78 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M 10 X 70 | 24 | 07119919674 | $5.13 | ENDED | Shop at ECS Tuning | |||
| 04 | Set fillister head 10 | M10X60 | 24 | 07509063196 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 4 | 12/1968 | 11/1975 | 33211209496 | $5.58 | ENDED | Shop at ECS Tuning | ||
| 06 | Repair kit bellows | 4 | 12/1968 | 11/1975 | 33219067912 | $57.68 | ENDED | Shop at ECS Tuning | ||
| 07 | Hose clamp | 4 | 12/1968 | 11/1975 | 33211206109 | $3.67 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
