Rear axle support/wheel suspension for BMW 2.5CS-3.0CSL 3.0CS (1975)

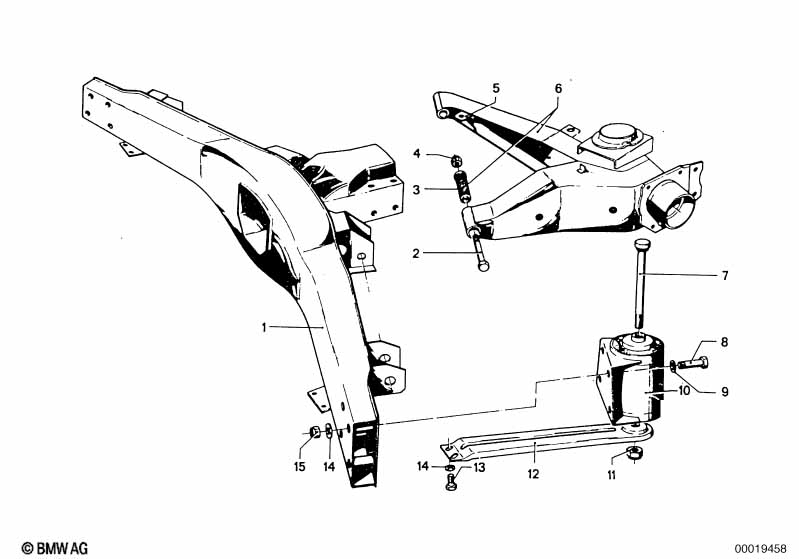

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33311107056 | $1210.86 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M12X1.5X90 | 4 | 07119914667 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Set rubber mounting | D=30MM | 4 | 33329061945 | $26.77 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-PHR | 4 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Bow | 2 | 33553628130 | $12.45 | Shop at ECS Tuning | |||||
| 07 | Knurled bolt | M14X1,5X30 10.9 | 2 | 33323628167 | $7.58 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X50 | 8 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Washer | 8,4 | 8 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M14X1,5 | 2 | 07129922745 | $1.04 | Shop at ECS Tuning | ||||
| 12 | Push rod | 2 | 33333628172 | $32.53 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X18-8.8-ZNS3 | 4 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Washer | A8,4 | 12 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M8 | 8 | 07129922716 | $0.36 | Shop at ECS Tuning |
