Crowngear set for BMW 2500-3.3Li 2800 (1973)

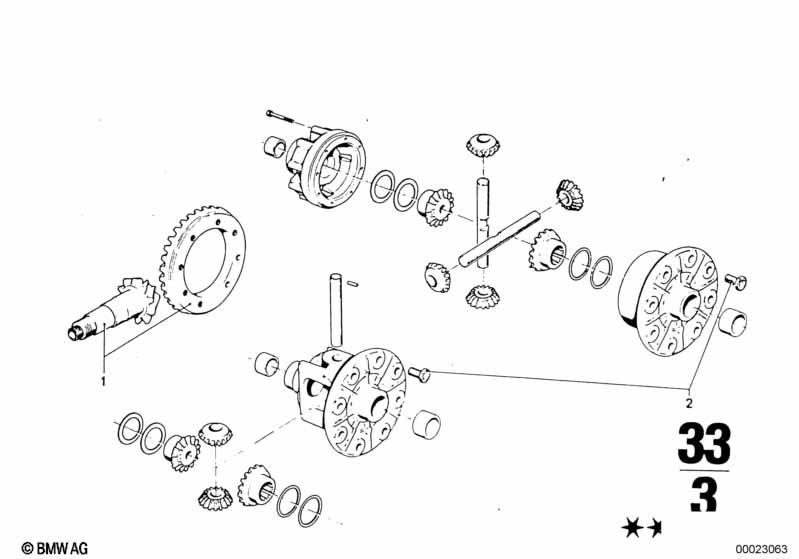

This Crowngear set technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=38:11=3,45 | 1 | 01/1969 | 02/1977 | 33121203086 | ENDED | Shop at ECS Tuning | ||
| 01 | Crowngear set | I=38:11=3,45 | 1 | 06/1969 | 02/1977 | 33121203086 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M10X24 | 8 | 01/1969 | 02/1977 | 33113704165 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Crowngear set?
- This technical diagram illustrates the Crowngear set within the Rear Axle group for the 2500-3.3Li 2800 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Crowngear set (Part #33121203086).
- Which models use the hardware listed in this Crowngear set?
- The hardware and components featured in the Crowngear set are specific to the 2500-3.3Li 2800 produced during 1973. These technical specifications ensure that parts like the Crowngear set (33121203086) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crowngear set assembly?
- Each item in the Crowngear set corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Crowngear set by locating its position on the schematic, which then links to the official BMW part number 33121203086 for the Rear Axle section.
