Final drive with differential for BMW 2500-3.3Li 2800 (1971)

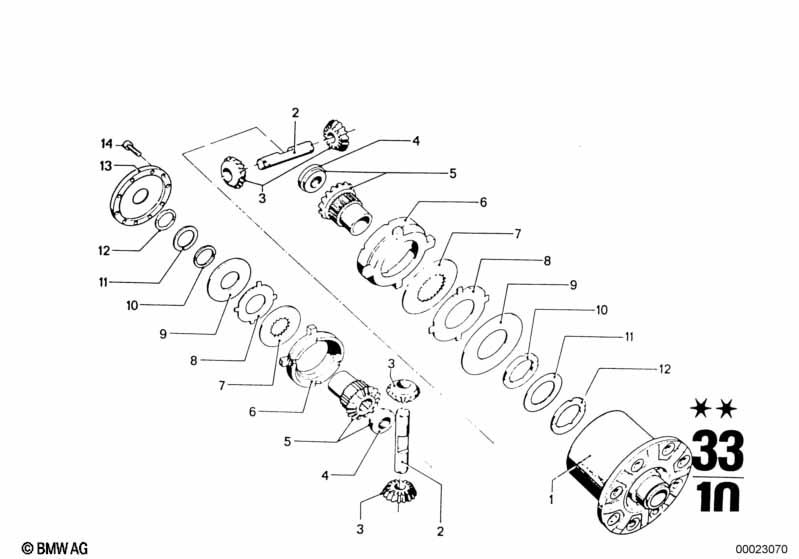

This Final drive with differential technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.

Final drive with differential
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Differential housing 1 01/1969 02/1977 33141203875 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 1 01/1969 02/1977 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 1 01/1969 02/1977 33141203070 ENDED Shop at ECS Tuning
02 Bevel mate shaft 2 33141203801 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
03 Bevel gear 4 33141201948 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 4 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 4 33141203070 ENDED Shop at ECS Tuning
04 Threaded washer 2 33141203880 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
05 Side gear 2 33141203879 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
06 Compression ring 2 33141203878 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
07 Inner disc 2 33141210626 $53.61 Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
08 Outer disc 1,90MM 2 33141203795 ENDED Shop at ECS Tuning
only in conjunction with
08 Outer disc 2,00MM 2 33141203796 ENDED Shop at ECS Tuning
only in conjunction with
08 Outer disc 2,10MM 2 33141203797 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
09 Diaphragm spring 2 33141204367 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
10 Stop disk 2,20MM 2 33141201931 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 2,15MM 2 33141201932 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 2,10MM 2 33141201933 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 2,05MM 2 33141201934 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 2,00MM 2 33141201935 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 1,95MM 2 33141201936 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 1,90MM 2 33141201937 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 1,85MM 2 33141201938 ENDED Shop at ECS Tuning
only in conjunction with
10 Stop disk 1,80MM 2 33141201939 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
11 Diaphragm spring 2 33141203884 $13.06 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
12 Stop disk 1,80MM 2 33141203876 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 2 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 2 33141203070 ENDED Shop at ECS Tuning
13 Housing cover 1 33141203877 ENDED Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 1 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 1 33141203070 ENDED Shop at ECS Tuning
14 Fillister-head screw M8X16 UFK 8 33147740005 $2.24 Shop at ECS Tuning
only in conjunction with
-- Limited slip diff.unit 25% 8 33141202858 ENDED Shop at ECS Tuning
-- Limited slip diff.unit 25% 8 33141203070 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
