Rear-axle-drive parts for BMW 2500-3.3Li 2500 (1977)

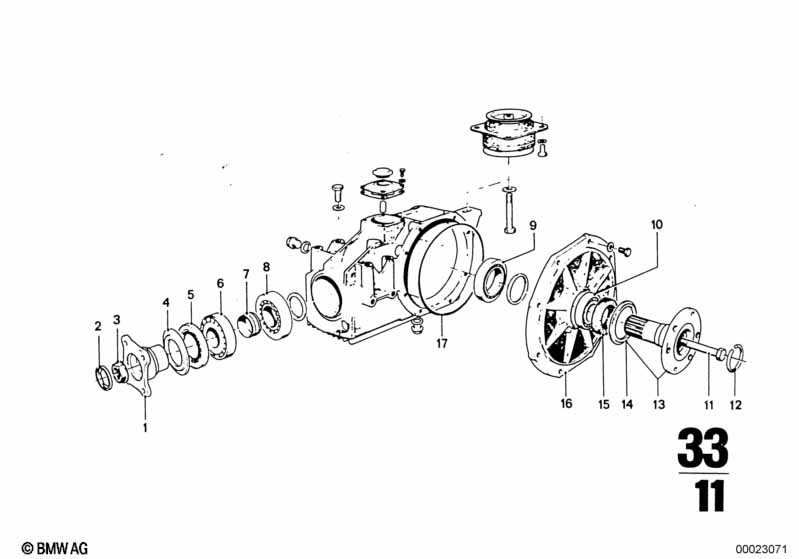

This Rear-axle-drive parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive flange | 1 | 33121200282 | ENDED | Shop at ECS Tuning | |||||
| 02 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 03 | Collar nut | M20X1,5 | 1 | 33121200258 | $8.56 | Shop at ECS Tuning | ||||
| 04 | Dustcover plate | 81MM | 1 | 33121200284 | $2.38 | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 07 | Clamping bush | 1 | 33121744368 | $9.14 | Shop at ECS Tuning | |||||
| 08 | Tapered roller bearing | 1 | 33121204315 | Shop at ECS Tuning | ||||||
| 09 | Tapered roller bearing | 2 | 33131204568 | Shop at ECS Tuning | ||||||
| 10 | Grooved ball bearing | 160 06 | 2 | 07119981720 | ENDED | Shop at ECS Tuning | ||||
| 14 | Dustcover plate | 61MM | 2 | 33413704139 | $1.02 | ENDED | Shop at ECS Tuning | |||
| 15 | Shaft seal | 2 | 33121210295 | Shop at ECS Tuning | ||||||
| 16 | Housing cover | 1 | 33111206165 | ENDED | Shop at ECS Tuning | |||||
| 17 | O-ring | 1 | 33113704163 | $5.14 | Shop at ECS Tuning | |||||
| 17 | O-ring | 1 | 33111204119 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Rear-axle-drive parts?
- This technical diagram illustrates the Rear-axle-drive parts within the Rear Axle group for the 2500-3.3Li 2500 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Drive flange (Part #33121200282).
- Which models use the hardware listed in this Rear-axle-drive parts?
- The hardware and components featured in the Rear-axle-drive parts are specific to the 2500-3.3Li 2500 produced during 1977. These technical specifications ensure that parts like the Drive flange (33121200282) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear-axle-drive parts assembly?
- Each item in the Rear-axle-drive parts corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Drive flange by locating its position on the schematic, which then links to the official BMW part number 33121200282 for the Rear Axle section.
