Rear axle suspension for BMW 2500-3.3Li 3.3Li

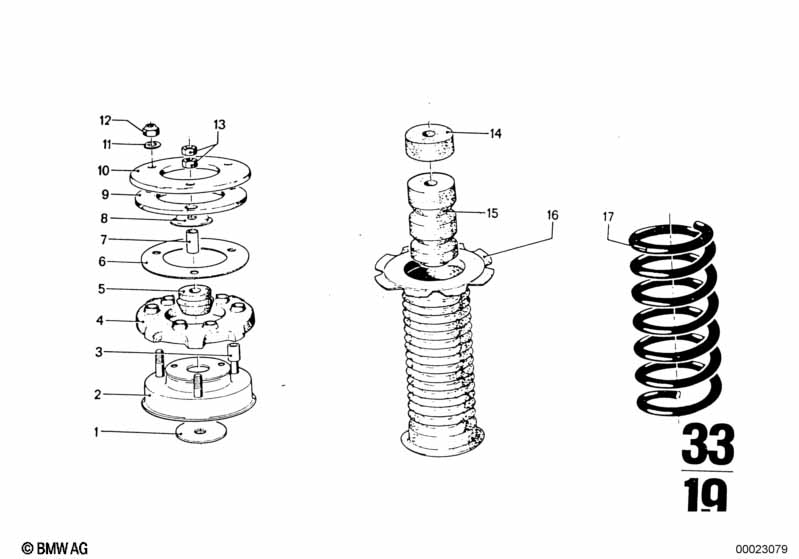

This Rear axle suspension technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 2 | 08/1968 | 02/1977 | 33521101066 | ENDED | Shop at ECS Tuning | |||
| 01 | Supporting Cup | 2 | 08/1968 | 02/1977 | 33521136063 | $3.59 | Shop at ECS Tuning | |||
| Late version | ||||||||||
| 02 | Supporting Cup | H=37 MM | 2 | 08/1968 | 02/1977 | 33521104341 | ENDED | Shop at ECS Tuning | ||
| 03 | Pipe | 6 | 33521103813 | $2.14 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Damper ring | X | 33521103811 | $12.88 | Shop at ECS Tuning | |||||
| 04 | Damper ring | 2 | 33521103811 | $12.88 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Supporting Cup | H=37 MM | X | 33521104341 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 2 | 33521100704 | $11.04 | ENDED | Shop at ECS Tuning | ||||
| 07 | Spacer tube | 15X2,47X28MM | 2 | 33521108138 | $16.39 | ENDED | Shop at ECS Tuning | |||
| 08 | Plate | 48MM | 2 | 08/1968 | 02/1977 | 33521111953 | $2.79 | Shop at ECS Tuning | ||
| 09 | Damper ring | 2 | 33521103810 | $80.56 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Supporting Cup | H=37 MM | X | 33521104341 | ENDED | Shop at ECS Tuning | ||||
| 10 | Ring | 2 | 33521104295 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Supporting Cup | H=37 MM | X | 33521104341 | ENDED | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M8 | 6 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 12 | Self-locking hex nut | M8-8-ZNNI SI | 6 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M10X1 | 4 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 15 | Absorber | 2 | 33531113645 | Shop at ECS Tuning | ||||||
| 16 | Cup | 2 | 08/1968 | 02/1977 | 33521109689 | $20.13 | Shop at ECS Tuning | |||
| 17 | Coil spring | 2 | 07/1971 | 02/1977 | 33531112131 | $108.59 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
