Suspension, stabilizer bar for BMW 2500-3.3Li 2500

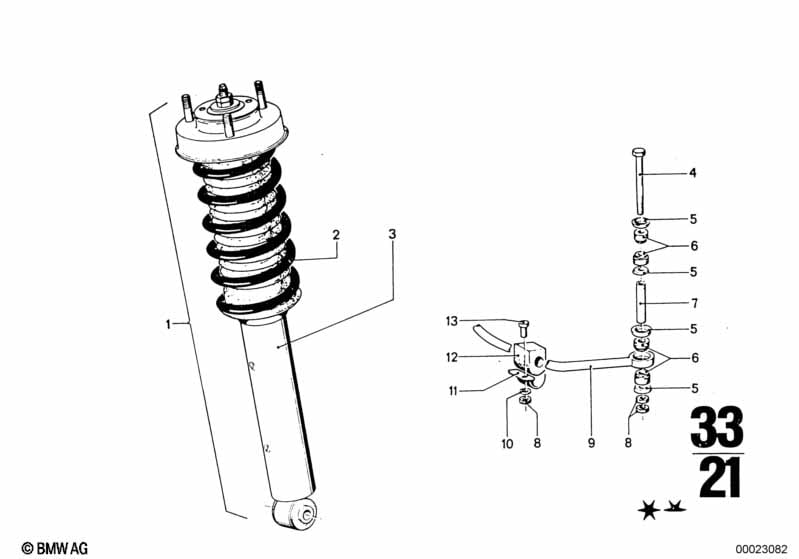

This Suspension, stabilizer bar technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 01 | Spring strut, rear | NIVOMAT | 2 | 08/1968 | 05/1971 | 33521106249 | ENDED | Shop at ECS Tuning | ||
| 02 | Coil spring | WEISS / NIVOMAT | 2 | 08/1968 | 05/1971 | 33531112192 | $146.20 | ENDED | Shop at ECS Tuning | |
| For vehicles with Self-levelling suspension blue |
=Yes |
|||||||||
| 03 | Shock absorber | NIVOMAT | 2 | 08/1968 | 05/1971 | 33521106072 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 04 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 05 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 06 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNS3 | 4 | 05/1971 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Stabilizer, rear | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 10 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Stabilizer support | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 12 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
