Suspension, stabilizer bar for BMW 2500-3.3Li 2500

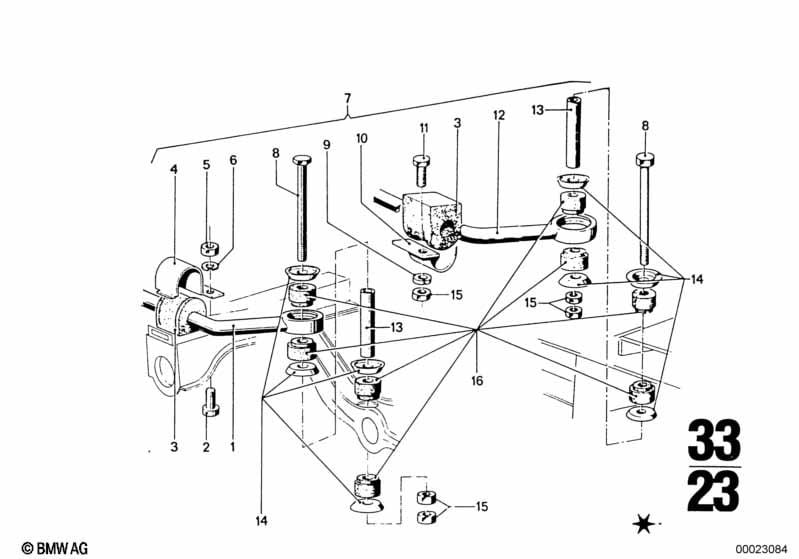

This Suspension, stabilizer bar technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer | D=18MM | 1 | 31351103001 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M10X22 | 2 | 07119901979 | $1.98 | Shop at ECS Tuning | ||||
| 03 | Stabilizer rubber mounting | D=18MM | 4 | 31352654111 | $8.86 | Shop at ECS Tuning | ||||
| 04 | Bracket front | 29 MM | 2 | 31351101107 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Stabilizer | 1 | 71601104533 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X160 | 4 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 09 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Stabilizer, rear | D=18MM | 1 | 33551123945 | $101.84 | ENDED | Shop at ECS Tuning | |||
| 13 | Spacer sleeve | 4 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plate | 16 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M8-8-ZNS3 | 10 | 05/1971 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 15 | Hex nut | M8-8-ZNNIV SI | 10 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 16 | Rubber Ring | 16 | 31351125712 | $1.37 | Shop at ECS Tuning |
