Stabilizer for BMW 2500-3.3Li 2500

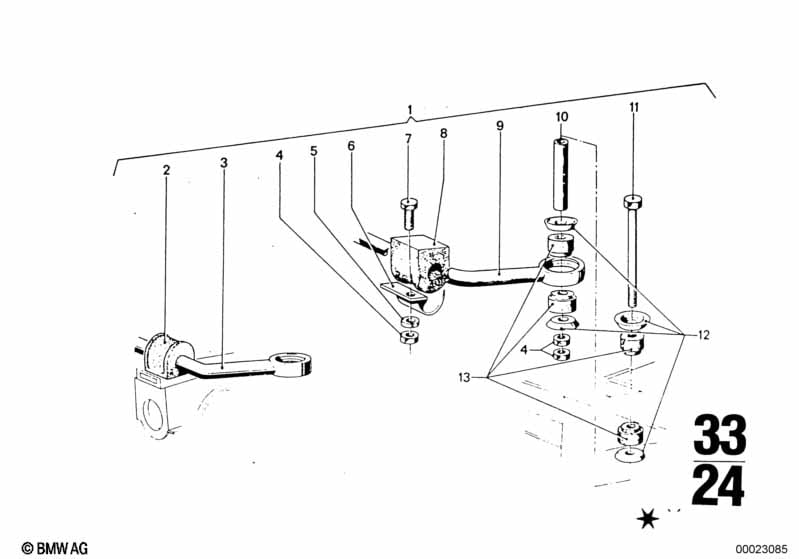

This Stabilizer technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set stabilizer | 1 | 08/1968 | 02/1977 | 71601110433 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber Mounting | D=20MM | 2 | 08/1968 | 02/1977 | 31351106862 | $18.38 | Shop at ECS Tuning | ||
| 03 | Stabilizer | D=20MM | 1 | 08/1968 | 02/1977 | 31351106847 | $96.26 | ENDED | Shop at ECS Tuning | |
| 04 | Hex nut | M8-8-ZNS3 | 8 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | Stabilizer support | 1 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Stabilizer rubber mounting | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 09 | Stabilizer, rear | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 10 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 12 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 13 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
