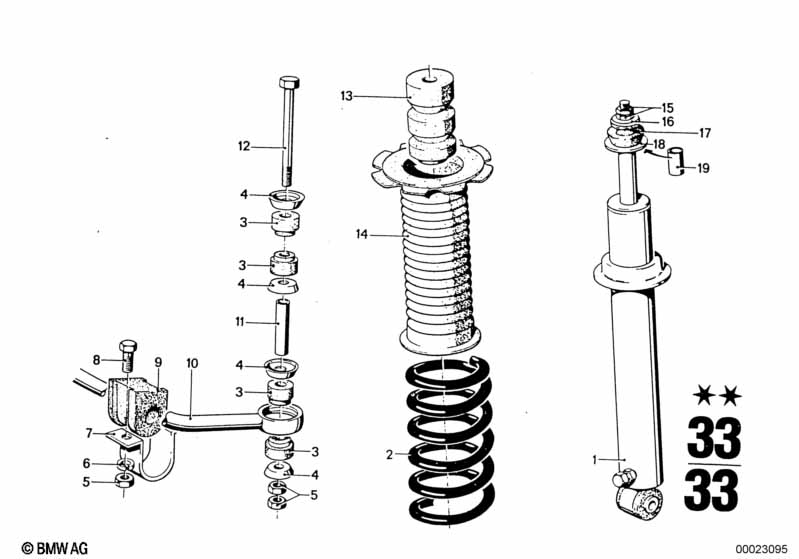

Rear spring strut, levelling device for BMW 2500-3.3Li 3.3Li
This Rear spring strut, levelling device technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 01 | Shock absorber | 2 | 01/1974 | 02/1977 | 37121113719 | ENDED | Shop at ECS Tuning | |||
| 02 | Coil spring, white | 2 | 01/1974 | 02/1977 | 37121114754 | ENDED | Shop at ECS Tuning | |||
| 03 | Rubber Ring | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 04 | Plate | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNS3 | 8 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Stabilizer support | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Rubber Mounting | 2 | 01/1974 | 02/1977 | 31331106861 | $4.42 | Shop at ECS Tuning | |||
| 10 | Stabilizer, rear | D=19MM | 1 | 01/1974 | 02/1977 | 37121114484 | ENDED | Shop at ECS Tuning | ||
| 11 | Spacer sleeve | 2 | 31352654108 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 13 | Absorber | 2 | 37121111405 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cup | 2 | 33521104397 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex nut | M12X1,5 | 4 | 07119921627 | ENDED | Shop at ECS Tuning | ||||
| 16 | Plate | 2 | 33521105827 | $3.18 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rubber Mounting | 2 | 33521100704 | $11.04 | ENDED | Shop at ECS Tuning | ||||
| 18 | Washer | 2 | 37121112395 | ENDED | Shop at ECS Tuning | |||||
| 19 | Spacer bush | 2 | 33521103146 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Rear spring strut, levelling device?
- This technical diagram illustrates the Rear spring strut, levelling device within the Rear Axle group for the 2500-3.3Li 3.3Li. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber (Part #37121113719).
- Which models use the hardware listed in this Rear spring strut, levelling device?
- The hardware and components featured in the Rear spring strut, levelling device are specific to the 2500-3.3Li 3.3Li. These technical specifications ensure that parts like the Shock absorber (37121113719) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear spring strut, levelling device assembly?
- Each item in the Rear spring strut, levelling device corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Shock absorber by locating its position on the schematic, which then links to the official BMW part number 37121113719 for the Rear Axle section.
