Levelling device/tubing rear for BMW 2500-3.3Li 2800 (1975)

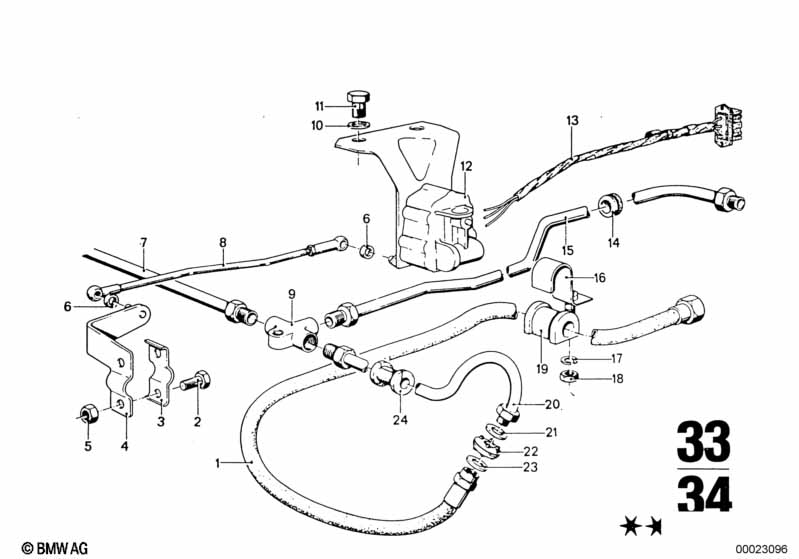

This Levelling device/tubing rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 01 | Pressure hose assy | 2 | 37121112830 | $67.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Clamp | 1 | 37121112451 | ENDED | Shop at ECS Tuning | |||||
| 04 | Lever | 1 | 37121124163 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6-10 ZN | 1 | 02/1977 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Washer | 2 | 35414640245 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pipe | M10/M10-829MM | 1 | 34326755594 | $8.65 | Shop at ECS Tuning | ||||
| 08 | Pull rod | 1 | 37121113391 | ENDED | Shop at ECS Tuning | |||||
| 09 | Distribution piece | M10X1 | 1 | 10/2003 | 34331163566 | $8.78 | ENDED | Shop at ECS Tuning | ||
| 09 | Distribution piece | M10X1 | 1 | 34341111435 | $8.08 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | A8 | 2 | 33173628125 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex bolt | M12X1,5X25 | 2 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 12 | Levelling switch | 1 | 37121111124 | $476.53 | ENDED | Shop at ECS Tuning | ||||
| 13 | Wiring set | 1 | 61111357175 | ENDED | Shop at ECS Tuning | |||||
| 14 | Grommet | 1 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 15 | Pipe | 1 | 34322283835 | $11.17 | Shop at ECS Tuning | |||||
| 16 | Bracket | 2 | 37131113098 | ENDED | Shop at ECS Tuning | |||||
| 17 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 18 | Hex nut | M8-8-ZNS3 | 2 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 18 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 19 | Insulating hose | 2 | 37131113100 | ENDED | Shop at ECS Tuning | |||||
| 20 | Pipe | M10/M10-283MM | 1 | 34326755328 | $5.83 | Shop at ECS Tuning | ||||
| 21 | Washer | 10X25X1,5-ZNS3 | 3 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 22 | Rubber grommet | 3 | 34306865954 | Shop at ECS Tuning | ||||||
| 23 | Washer | 14X25X2-ZNS3 | 3 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 24 | Bushing | 6 | 37131113373 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
