Wiring harness levelling device for BMW 2500-3.3Li 3.3Li

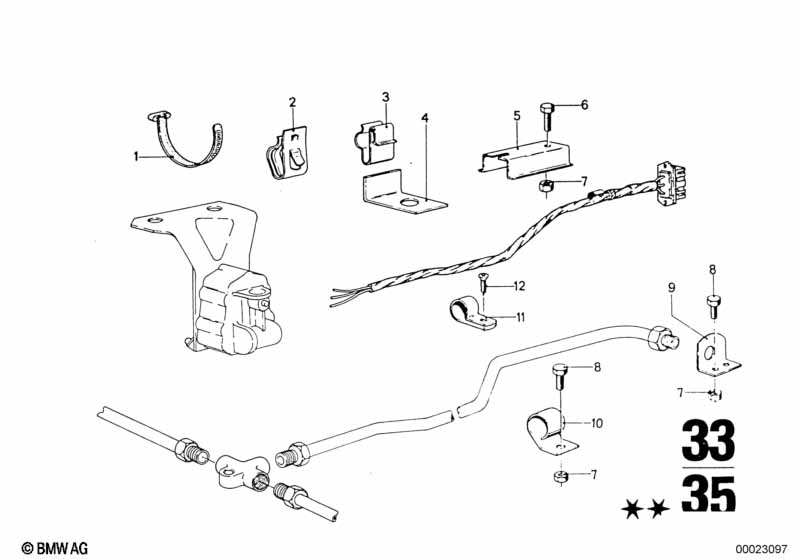

This Wiring harness levelling device technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 01 | Cable tie | L=292MM/B=4,8MM | 8 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Cable clamp | D=7MM | 1 | 61131353804 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 03 | Cable clamp | D=5MM | 1 | 61131353126 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Cable holder | 1 | 61131357164 | ENDED | Shop at ECS Tuning | |||||
| 05 | Protection plate | 1 | 37131115745 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M5X25-10.9-ZNS3 | 2 | 07119904498 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5 | 14 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X10 | 12 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 09 | Support | 3 | 37131115746 | ENDED | Shop at ECS Tuning | |||||
| 10 | Clamp | 6 | 37131115744 | ENDED | Shop at ECS Tuning | |||||
| 11 | Clamp | 9 | 62121365810 | $1.64 | ENDED | Shop at ECS Tuning | ||||
| 12 | Screw | 5 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
