Rear-axle-drive for BMW R 69 -69 R69 (1960)

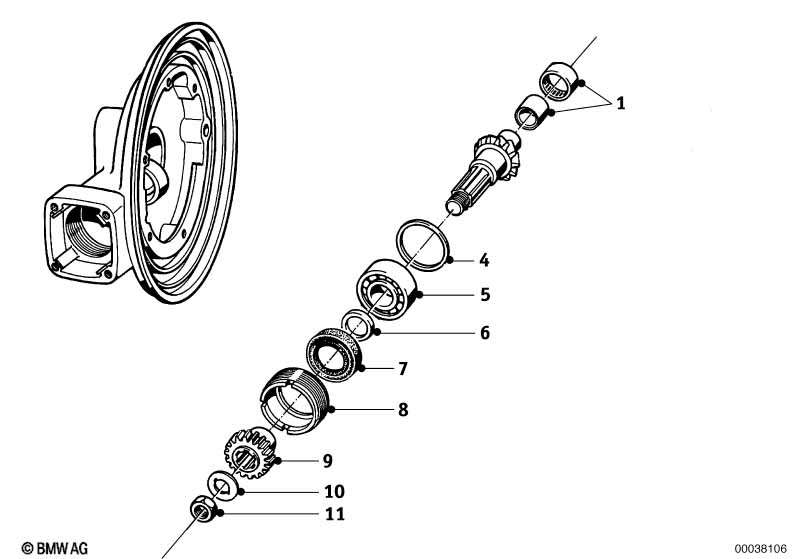

This Rear-axle-drive technical drawing provides a detailed breakdown of the assembly for the R 69 -69 R69. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1960.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Needle bearing | 1 | 33123038245 | ENDED | Shop at ECS Tuning | |||||
| 04 | Adjusting washer | 0,2 | X | 33121231189 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adjusting washer | 0,28 | X | 33121231190 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adjusting washer | 0,38 | X | 33121231191 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adjusting washer | 0,5 | X | 33121231192 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adjusting washer | 0,63 | X | 33121231193 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adjusting washer | 0,75 | X | 33121231194 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adjusting washer | 1,0 | X | 33121231195 | ENDED | Shop at ECS Tuning | ||||
| 05 | Angular ball bearing | 3304 | 1 | 07119982468 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 1 | 33123038248 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket ring | 1 | 33123038257 | $16.15 | Shop at ECS Tuning | |||||
| 08 | Threaded ring | 1 | 33123038252 | $28.42 | Shop at ECS Tuning | |||||
| 09 | Gear wheel | 1 | 33123038260 | $215.50 | ENDED | Shop at ECS Tuning | ||||
| 10 | Securing plate | 1 | 33123038264 | $5.71 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
