Headlight vertical aim control sensor for BMW X5 E53 3.0d

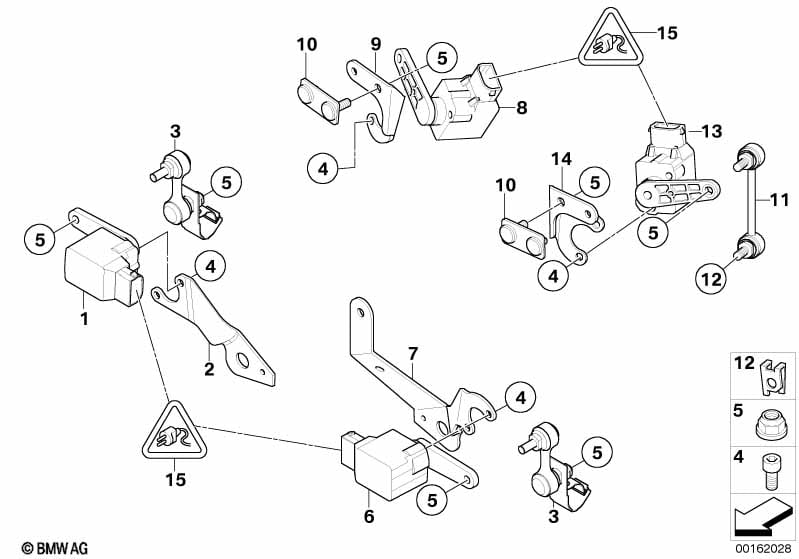

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light |
S522A=Yes |
||||||||
| 01 | Level sensor | 1 | 37146784696 | $85.28 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension or 2-axle self-levelling suspension |
S220A=Yes S221A=Yes |
|||||||||
| 01 | Level sensor | 1 | 37146784696 | $85.28 | Shop at ECS Tuning | |||||
| 02 | Right ride height sensor bracket | 1 | 31121096570 | $14.26 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension or 2-axle self-levelling suspension |
S220A=Yes S221A=Yes |
|||||||||
| 02 | Right ride height sensor bracket | 1 | 31121096570 | $14.26 | Shop at ECS Tuning | |||||
| 03 | Regulating rod | 2 | 37146766799 | $8.35 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension or 2-axle self-levelling suspension |
S220A=Yes S221A=Yes |
|||||||||
| 03 | Regulating rod | 2 | 37146766799 | $8.35 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M5X10-8.8-ZNNIV | 8 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 8 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 06 | Level sensor | 1 | 37146784696 | $85.28 | Shop at ECS Tuning | |||||
| 07 | Left ride height sensor bracket | 1 | 31121096569 | $14.26 | Shop at ECS Tuning | |||||
| 08 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 08 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 08 | Level sensor | 1 | 37146754921 | $85.28 | Shop at ECS Tuning | |||||
| 09 | Right ride height sensor bracket | 1 | 33311093703 | $4.73 | Shop at ECS Tuning | |||||
| 10 | Lock plate | 2 | 33311093516 | $3.24 | Shop at ECS Tuning | |||||
| 11 | Regulating rod | 71,5MM | 2 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 12 | Clip | 2 | 33311093654 | $0.17 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 13 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 13 | Level sensor | 1 | 37146754921 | $85.28 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension or 2-axle self-levelling suspension |
S220A=Yes S221A=Yes |
|||||||||
| 14 | Left ride height sensor bracket | 1 | 33311094061 | $6.00 | Shop at ECS Tuning | |||||
| 15 | Universal socket housing uncoded | 6 POL. | 4 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 10 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 10 | 61136931880 | Shop at ECS Tuning | |||||
