Rear axle carrier for BMW X5 E53 3.0d

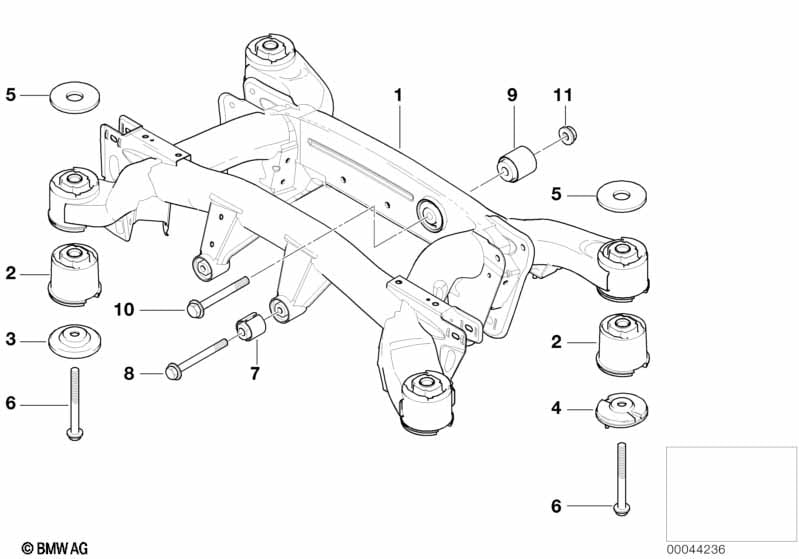

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33316770459 | $1303.17 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 4 | 33316770454 | $85.70 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 4 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Stopper, front | 2 | 33311094059 | $8.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stopper, rear | 2 | 33316770458 | $17.58 | Shop at ECS Tuning | |||||
| 05 | Stopper | 4 | 33311094058 | $4.19 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M14X1,5X138 | 4 | 33326760344 | $5.50 | Shop at ECS Tuning | ||||
| 07 | RUBBER MOUNTING front | 2 | 33176770457 | $18.93 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M12X1,5X87 ZNS3 | 2 | 33326760346 | $2.75 | Shop at ECS Tuning | ||||
| 09 | RUBBER MOUNTING rear | 1 | 33176770456 | $33.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M14X1,5X110 | 1 | 33176760342 | $3.50 | Shop at ECS Tuning | ||||
| 11 | Combination nut | M14X1,5-10ZNS3 | 1 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
