Stabilizer, rear for BMW X5 E53 3.0d

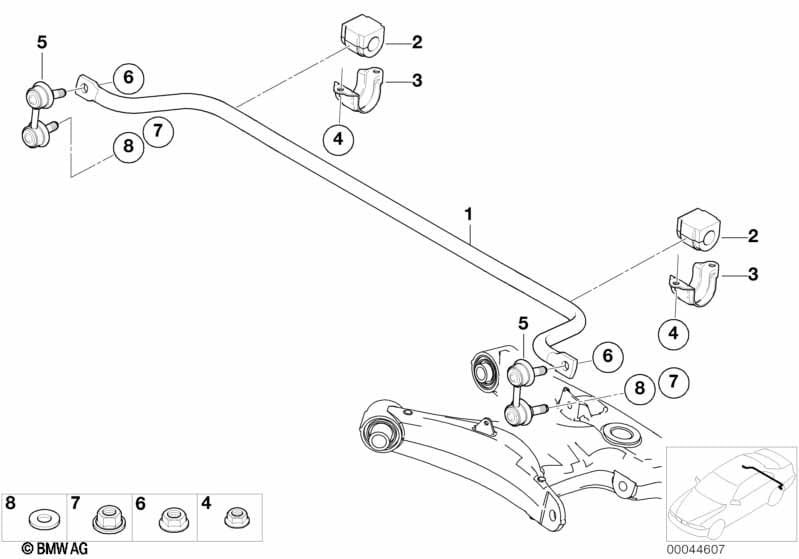

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=22MM | 1 | 33551097005 | $155.27 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=22MM | 1 | 33551097005 | $155.27 | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=23,5MM | 1 | 33556750357 | $155.27 | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=22MM | 1 | 10/2002 | 33551097005 | $155.27 | Shop at ECS Tuning | |||
| For vehicles with 2-axle self-levelling suspension and Sports suspension settings |
S221A=Yes S226A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=22MM | 1 | 10/2002 | 33551097005 | $155.27 | Shop at ECS Tuning | |||
| For vehicles with Self-levelling suspension and Sports suspension settings |
S220A=Yes S226A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=23,5MM | 1 | 33556750357 | $155.27 | Shop at ECS Tuning | ||||
| 02 | Stabilizer rubber mounting | D=22MM | 2 | 33551096893 | $10.93 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=22MM | 2 | 33551096893 | $10.93 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=23,5MM | 2 | 33556750358 | $10.93 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=22MM | 2 | 10/2002 | 33551096893 | $10.93 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 10/2002 | 83192405829 | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension and Sports suspension settings |
S221A=Yes S226A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=22MM | 2 | 10/2002 | 33551096893 | $10.93 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 10/2002 | 83192405829 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension and Sports suspension settings |
S220A=Yes S226A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=23,5MM | 2 | 33556750358 | $10.93 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Stabilizer support | 2 | 33556780707 | $2.22 | Shop at ECS Tuning | |||||
| 04 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Stabilizer link | 2 | 33551096735 | $40.30 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Washer | D=12MM | 2 | 26111229125 | $0.48 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 08 | Washer | D=12MM | 2 | 26111229125 | $0.48 | SI 260296(071) | Shop at ECS Tuning | |||
Notes
- SI = Service Information
