Levell.device, air spring and ctrl unit for BMW X5 E53 3.0d

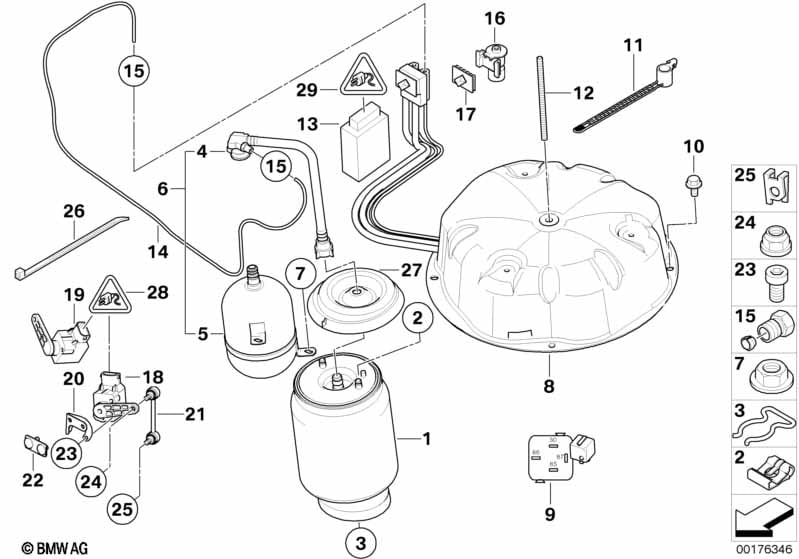

This Levell.device, air spring and ctrl unit technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Safety vehicle |
S106A=No |
||||||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 01 | Pneumatic spring, left | 1 | 37121095579 | $187.40 | Shop at ECS Tuning | |||||
| 01 | Pneumatic spring, right | 1 | 37121095580 | $187.40 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 01 | Pneumatic spring, left | 1 | 10/2003 | 37121095579 | $187.40 | Shop at ECS Tuning | ||||
| 01 | Pneumatic spring, right | 1 | 10/2003 | 37121095580 | $187.40 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension and Sports suspension settings |
S220A=Yes S226A=Yes |
|||||||||
| 01 | Pneumatic spring, left | 1 | 37126750355 | $187.40 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pneumatic spring, right | 1 | 37126750356 | $187.40 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension and Sports suspension settings |
S221A=Yes S226A=Yes |
|||||||||
| 01 | Pneumatic spring, left | 1 | 37121095579 | $187.40 | Shop at ECS Tuning | |||||
| 01 | Pneumatic spring, right | 1 | 37121095580 | $187.40 | Shop at ECS Tuning | |||||
| 02 | Circlip | B8 | 4 | 07129904492 | Shop at ECS Tuning | |||||
| 03 | Fuse | 2 | 37121096962 | $2.53 | Shop at ECS Tuning | |||||
| 04 | Air reservoir with pipe left | 2 | 09/2001 | 37126755021 | $81.62 | Shop at ECS Tuning | ||||
| 05 | Air reservoir with pipe right | 2 | 09/2001 | 37126755022 | $81.62 | Shop at ECS Tuning | ||||
| 06 | Air reservoir with pipe left | 1 | 37126755021 | $81.62 | Shop at ECS Tuning | |||||
| 06 | Air reservoir with pipe right | 1 | 37126755022 | $81.62 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 08 | Air supply device | 1 | 37226787616 | $807.75 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 08 | Air supply device | 1 | 37226787617 | $881.35 | Shop at ECS Tuning | |||||
| 09 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Cable tie | L=119MM | 1 | 61138357028 | Shop at ECS Tuning | |||||
| 12 | Threaded rod | 1 | 71151092320 | $2.70 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 13 | Air supply control unit | 1 | 37146874414 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Felt strip, self-adhesive | 130X40X3 MM | 1 | 54347248700 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 13 | Air supply control unit | 1 | 37146773999 | $732.66 | Shop at ECS Tuning | |||||
| 14 | Left distribution piece pipe | ROT | 1 | 37231096981 | $4.68 | Shop at ECS Tuning | ||||
| 14 | Right distribution piece pipe | BLAU | 1 | 37231096980 | $4.97 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 15 | Screwed connection | D=4MM | 4 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 15 | Screwed connection | D=4MM | 2 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| 16 | Distribution piece | 1 | 37226754486 | $15.70 | Shop at ECS Tuning | |||||
| 17 | Bracket, plug connection white | 1 | 61131383699 | $0.93 | Shop at ECS Tuning | |||||
| 18 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 18 | Level sensor | 1 | 37146754921 | $85.28 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension and Xenon Light |
S221A=Yes S522A=Yes |
|||||||||
| 18 | Level sensor | 1 | 37146754921 | $85.28 | Shop at ECS Tuning | |||||
| 19 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 19 | Level sensor | 1 | 37146754921 | $85.28 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension and Xenon Light |
S221A=Yes S522A=Yes |
|||||||||
| 19 | Level sensor | 1 | 37146755045 | $85.28 | Shop at ECS Tuning | |||||
| 20 | Left ride height sensor bracket | 1 | 33311094061 | $6.00 | Shop at ECS Tuning | |||||
| 20 | Right ride height sensor bracket | 1 | 33311093703 | $4.73 | Shop at ECS Tuning | |||||
| 21 | Regulating rod | 71,5MM | 2 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 22 | Lock plate | 2 | 33311093516 | $3.24 | Shop at ECS Tuning | |||||
| 23 | Fillister-head screw | M5X10-8.8-ZNNIV | 4 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 24 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 25 | Clip | 2 | 33311093654 | $0.17 | Shop at ECS Tuning | |||||
| 26 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 27 | Protection cap | LINKS | 1 | 51717024679 | $5.38 | Shop at ECS Tuning | ||||
| 27 | Protection cap | RECHTS | 1 | 51717024680 | $5.38 | Shop at ECS Tuning | ||||
| 28 | Universal socket housing uncoded | 6 POL. | 2 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 10 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 10 | 61136931880 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 29 | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 29 | Socket housing | 37-54POL. | 1 | 61136909070 | $1.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 54 POL. | 1 | 61132471244 | Shop at ECS Tuning | |||||
| -- | Socket housing | 36 POL. | 1 | 61136920062 | $1.22 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0.2-0.5MM²/SN | 12 | 61138369696 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0.75 MM² /SN | 12 | 61138369700 | $0.35 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
