Final drive, gasket set for BMW 3 Series E46 318d (2005)

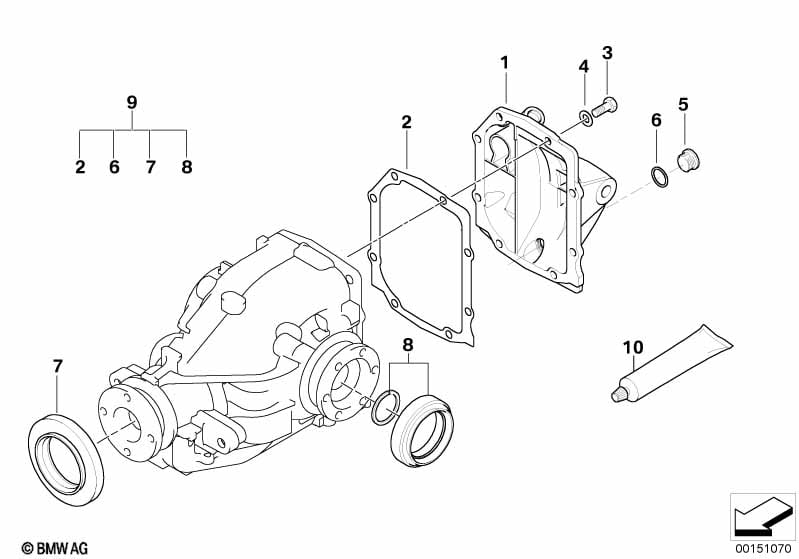

This Final drive, gasket set technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cover | TYP 188K | 1 | 33117508901 | $107.22 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 02 | Gasket Asbestos Free | TYP 188K | 1 | 33121214719 | $1.73 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual Use liquid sealing compound 33 10 0 404 517 |
||||||||||
| 03 | Hex bolt with washer | M10X25-10.9ZNS3 | 5 | 09/2003 | 07119905147 | $1.07 | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 03 | Hex bolt | M10X30-10.9ZNS3 | 3 | 09/2003 | 07119902912 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 03 | Hex bolt with washer | M10X25-10.9ZNS3 | 8 | 09/2003 | 07119905147 | $1.07 | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 05 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 07 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 08 | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 09 | Gasket set differential | TYP 188K | 1 | 33101214618 | $49.38 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 10 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
