Final drive, gasket set for BMW X5 E53 3.0d

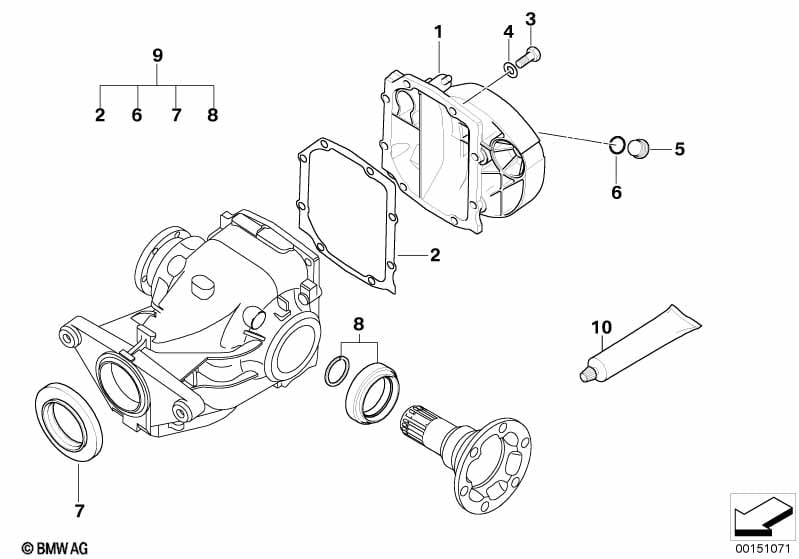

This Final drive, gasket set technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cover | TYP 188K | 1 | 33117504045 | ENDED | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Transmission cover | TYP 188K | 1 | 33117504045 | ENDED | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 02 | Gasket Asbestos Free | TYP 188K | 1 | 33121214719 | $1.73 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual Use liquid sealing compound 33 10 0 404 517 |
||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 02 | Gasket Asbestos Free | TYP 188K | 1 | 33121214719 | $1.73 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual Use liquid sealing compound 33 10 0 404 517 |
||||||||||
| 04 | Washer | D=10MM | 8 | 11/2003 | 07119904201 | $1.02 | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 05 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 06 | Gasket ring | A22X27-AL | 2 | 11/2003 | 07119963355 | $0.36 | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 07 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 07 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 08 | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
| 09 | Gasket set differential | TYP 188K | 1 | 33101214618 | $49.38 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 09 | Gasket set differential | TYP 188K | 1 | 33101214618 | $49.38 | ENDED | Shop at ECS Tuning | |||
| Note Repair Manual | ||||||||||
| 10 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| Note Repair Manual | ||||||||||
