Final drive, ventilation for BMW X5 E53 3.0d

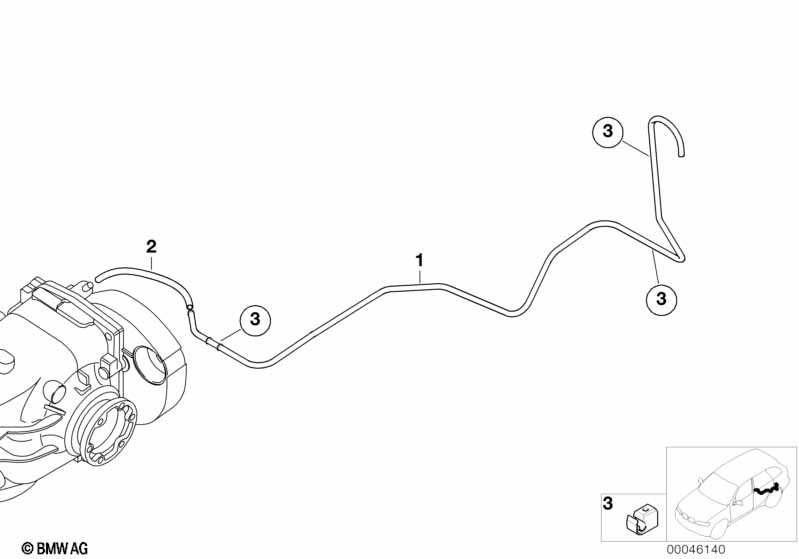

This Final drive, ventilation technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent pipe | L=1482MM/D=8MM | 1 | 33101428780 | $28.37 | +core | Shop at ECS Tuning | |||
| 02 | Vent hose | L=251MM/D=8MM | 1 | 33101428781 | $11.35 | Shop at ECS Tuning | ||||
| 03 | Tubing support | 3 | 16131177494 | $1.60 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X5 E53 3.0d Final drive, ventilation?
- This technical diagram illustrates the Final drive, ventilation within the Rear Axle group for the X5 E53 3.0d. It provides a detailed exploded view of the components, identifying key parts such as the Vent pipe (Part #33101428780).
- Which models use the hardware listed in this Final drive, ventilation?
- The hardware and components featured in the Final drive, ventilation are specific to the X5 E53 3.0d. These technical specifications ensure that parts like the Vent pipe (33101428780) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Final drive, ventilation assembly?
- Each item in the Final drive, ventilation corresponds to the numbered list below the illustration. For the X5 E53 3.0d, you can identify the Vent pipe by locating its position on the schematic, which then links to the official BMW part number 33101428780 for the Rear Axle section.
