Differential-drive/output for BMW 5 Series E39 525i (2003)
This Differential-drive/output technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | No further intervention permitted | |||||||||
| 01 | Rear-axle-drive | I=3,15 | 1 | 33101428499 | $1411.27 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M14X1,5X110 | 1 | 33176760342 | $3.50 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M12X1,5X87 ZNS3 | 2 | 33326760346 | $2.75 | Shop at ECS Tuning | ||||
| 05 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 11 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| Important! Drive flange and nut must not be replaced. |
||||||||||
| 12 | dustcover plate, small | 1 | 33121213903 | $1.30 | Shop at ECS Tuning | |||||
| 14 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 15 | Drive flange output | VL-103 | 2 | 33131214720 | $91.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||

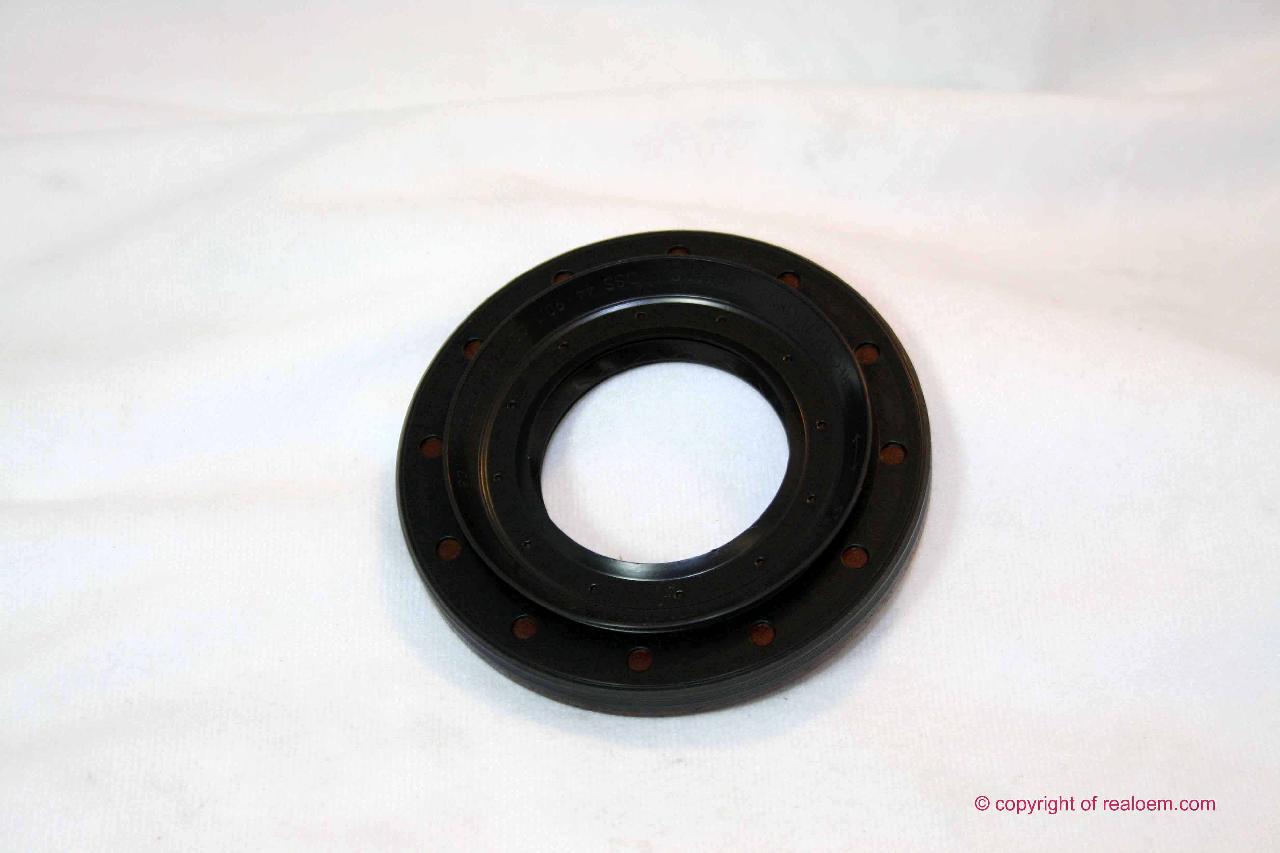

| -- | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 16 | Dust guard ring, outer | D=68,8 | 2 | 33131428097 | $1.57 | Shop at ECS Tuning | ||||
| 17 | Dust guard ring, inner | D=60 | 2 | 33131214298 | $1.50 | Shop at ECS Tuning | ||||
| 18 | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| 19 | Lock Ring | D=22,4 | 2 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| 20 | Stick-on label | DE, EN | 1 | 01399791197 | $4.25 | Shop at ECS Tuning | ||||
| 21 | BMW synthetic OSP | 1L | X | 83222365987 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
