Differential-spacer ring for BMW 7 Series E38 740iL (1996)

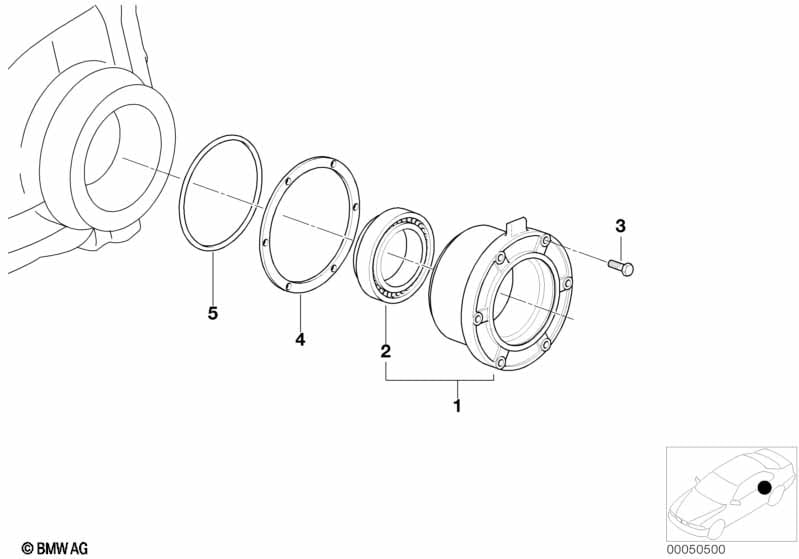

This Differential-spacer ring technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cover | 2 | 33111205749 | $81.51 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X25 | 12 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Spacer rings set | 1,30MM-1,70MM | X | 33139065736 | $130.03 | Shop at ECS Tuning | ||||
| 04 | Spacer rings set | 1,75MM-1,90MM | X | 33139065737 | $112.43 | Shop at ECS Tuning | ||||
| 05 | O-ring | D=90MM/3MM | 2 | 33111214144 | $2.16 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740iL Differential-spacer ring?
- This technical diagram illustrates the Differential-spacer ring within the Rear Axle group for the 7 Series E38 740iL produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Transmission cover (Part #33111205749).
- Which models use the hardware listed in this Differential-spacer ring?
- The hardware and components featured in the Differential-spacer ring are specific to the 7 Series E38 740iL produced during 1996. These technical specifications ensure that parts like the Transmission cover (33111205749) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Differential-spacer ring assembly?
- Each item in the Differential-spacer ring corresponds to the numbered list below the illustration. For the 7 Series E38 740iL, you can identify the Transmission cover by locating its position on the schematic, which then links to the official BMW part number 33111205749 for the Rear Axle section.
