Single components for rear spring strut for BMW X5 E53 3.0d

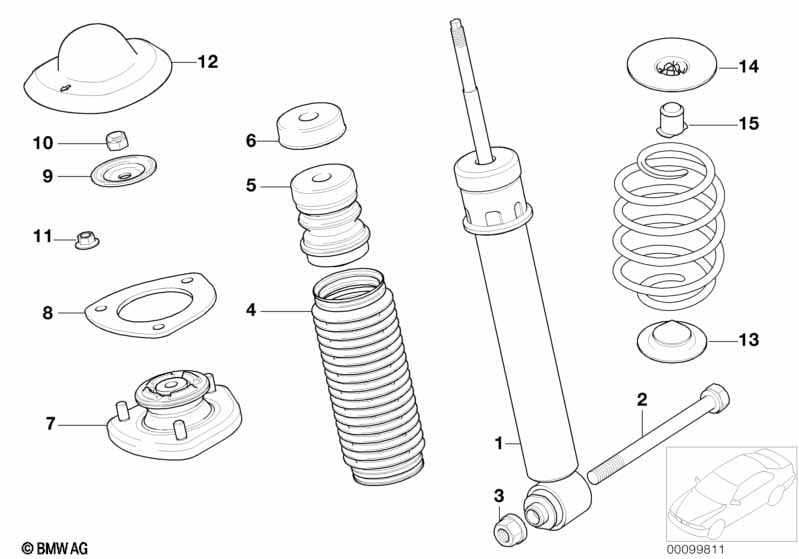

This Single components for rear spring strut technical drawing provides a detailed breakdown of the assembly for the X5 E53 3.0d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following part is absolutely vital for shock absorber replacements: Additional shock absorber, rear |
|||||||||
| 01 | Shock absorber, rear | 2 | 33506751543 | $280.18 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X180 | 2 | 33521093856 | $6.11 | ENDED | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 33521096278 | $280.18 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X180 | 2 | 33521093856 | $6.11 | ENDED | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 33526755839 | $280.18 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X180 | 2 | 33521093856 | $6.11 | ENDED | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 33506751544 | $308.11 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X180 | 2 | 33521093856 | $6.11 | ENDED | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension and Sports suspension settings |
S220A=Yes S226A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 10/2003 | 33526750361 | $308.11 | +core | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X180 | 2 | 10/2003 | 33521093856 | $6.11 | ENDED | Shop at ECS Tuning | ||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 10/2003 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| For vehicles with 2-axle self-levelling suspension and Sports suspension settings |
S221A=Yes S226A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 33526761928 | $308.11 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1,5X180 | 2 | 33521093856 | $6.11 | ENDED | Shop at ECS Tuning | |||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M14X180 ZNS3 | 2 | 07119909862 | Shop at ECS Tuning | |||||
| 03 | Combination nut | M14X1,5-10ZNS3 | 2 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| 04 | Rubber boot | 2 | 31321125878 | $12.62 | Shop at ECS Tuning | |||||
| 05 | Auxiliary shock absorber, rear | L=90MM | 2 | 33536751030 | $25.23 | +core | Shop at ECS Tuning | |||
| For vehicles with 2-axle self-levelling suspension |
S221A=Yes |
|||||||||
| 05 | Auxiliary shock absorber, rear | L=85MM | 2 | 33536755885 | $25.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 05 | Auxiliary shock absorber, rear | L=90MM | 2 | 33536751030 | $25.23 | +core | Shop at ECS Tuning | |||
| For vehicles with 2-axle self-levelling suspension and Sports suspension settings |
S221A=Yes S226A=Yes |
|||||||||
| 05 | Auxiliary shock absorber, rear | L=80MM | 2 | 33536762407 | $25.23 | Shop at ECS Tuning | ||||
| 06 | Supporting Cup | 2 | 33521095031 | $4.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Guide support | 2 | 33526773669 | $87.28 | Shop at ECS Tuning | |||||
| 08 | Washer-gasket | 2 | 33521097205 | $1.21 | Shop at ECS Tuning | |||||
| 09 | Plate | 2 | 33526779415 | $0.87 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 11 | Hex nut wiht flange | M10-10 ZNS3 | 6 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 12 | Protection cap | LINKS | 1 | 51717007785 | $9.30 | Shop at ECS Tuning | ||||
| 12 | Protection cap | RECHTS | 1 | 51717007786 | $9.30 | Shop at ECS Tuning | ||||
| 13 | Spring pad lower | 2 | 33531093785 | $9.75 | Shop at ECS Tuning | |||||
| 14 | Spring pad upper | 2 | 33531093786 | $7.08 | Shop at ECS Tuning | |||||
| 15 | Cover | 2 | 33531093787 | $0.70 | Shop at ECS Tuning | |||||
