Single components for rear spring strut for BMW MINI R50 One 1.6i

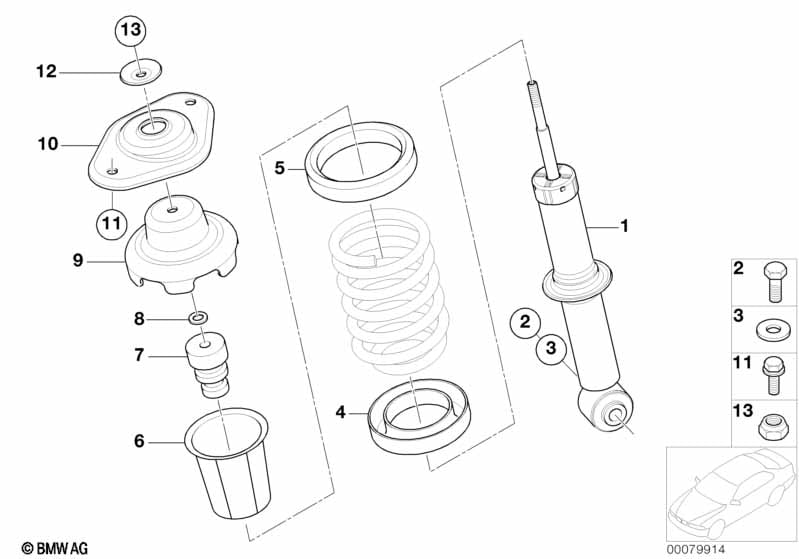

This Single components for rear spring strut technical drawing provides a detailed breakdown of the assembly for the MINI R50 One 1.6i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Spare parts also apply to John Cooper Works except for John Cooper Works-specific components. further information see HG31 FG10 ---------- The following part is absolutely vital for strut replacements: Additional shock absorber, rear |
|||||||||
| 01 | Shock absorber, rear | 2 | 33506764912 | $103.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1.5X87 | 2 | 33506773205 | $2.98 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 33506764913 | $103.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt | M14X1.5X87 | 2 | 33506773205 | $2.98 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M14X1.5X87 | 2 | 33506773205 | $2.98 | Shop at ECS Tuning | ||||
| 03 | Washer | 2 | 33506781134 | $0.79 | Shop at ECS Tuning | |||||
| 04 | Spring pad lower | 2 | 33531495715 | $2.49 | Shop at ECS Tuning | |||||
| 05 | Spring pad upper | 2 | 33531495714 | $8.03 | Shop at ECS Tuning | |||||
| 06 | Protection tube | 2 | 07/2008 | 33531507254 | $3.33 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection tube | 2 | 33538874243 | Shop at ECS Tuning | ||||||
| 07 | Auxiliary shock absorber, rear | 2 | 33536772740 | $14.87 | Shop at ECS Tuning | |||||
| 08 | Ring f piston rod | 2 | 33506778830 | $0.98 | Shop at ECS Tuning | |||||
| 09 | Upper spring plate | 2 | 33531508011 | $7.49 | Shop at ECS Tuning | |||||
| 10 | Left guide support | 1 | 33526754123 | $87.28 | Shop at ECS Tuning | |||||
| 10 | Right guide support | 1 | 33526754124 | $87.28 | Shop at ECS Tuning | |||||
| 11 | Screw self-tapping | M10X1,5X40 | 4 | 33526757104 | $1.79 | Shop at ECS Tuning | ||||
| 12 | Plate | ZNFE SI | 2 | 33526776759 | $1.95 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 33526773882 | $1.03 | Shop at ECS Tuning | ||||
