limited slip differential assembly for BMW 3 Series E36 M3 (1998)

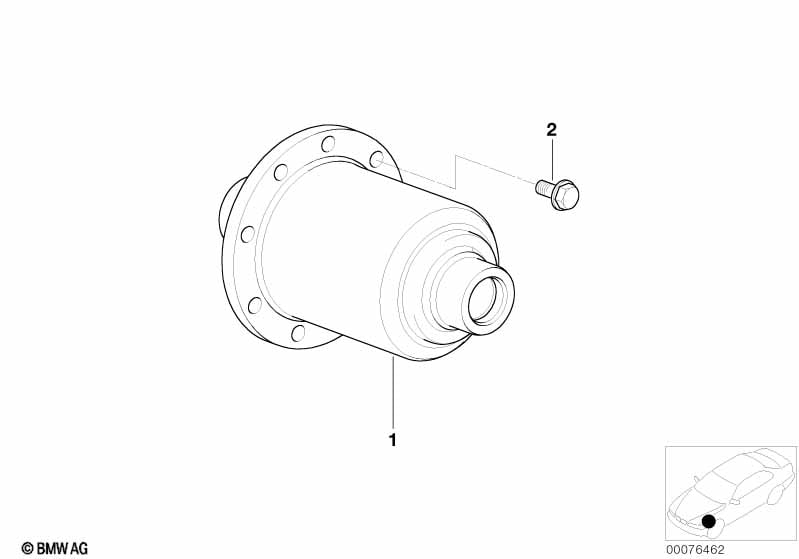

This limited slip differential assembly technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Single parts no longer offered | |||||||||
| 01 | Limited slip diff.unit | 25% | 1 | 33142227403 | $2008.80 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hexagon antifatigue bolt | M14X1,5X24 12.9 | X | 33132227347 | $2.42 | Shop at ECS Tuning | ||||
| 02 | Hexagon antifatigue bolt | M14X1,5X24 12.9 | X | 33132227347 | $2.42 | Shop at ECS Tuning | ||||
