Headlight vertical aim control sensor for BMW MINI R50 One 1.6i

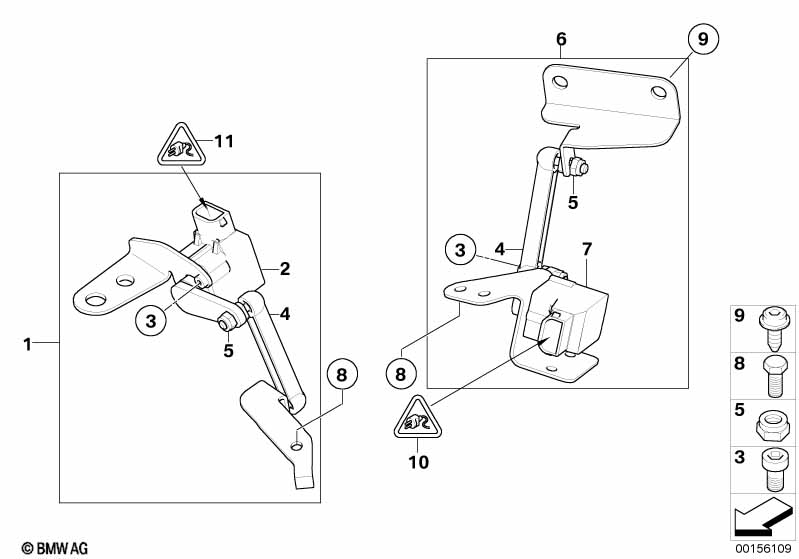

This Headlight vertical aim control sensor technical drawing provides a detailed breakdown of the assembly for the MINI R50 One 1.6i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light |
S522A=Yes |
||||||||
| 01 | Level sensor, front | 1 | 37146784698 | $84.38 | Shop at ECS Tuning | |||||
| 02 | Level sensor | 1 | 37146784697 | $97.68 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M5X10-8.8-ZNNIV | 4 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Regulating rod | 71,5MM | 2 | 37146752797 | $6.18 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Level sensor, rear | 1 | 01/2006 | 37146853759 | Shop at ECS Tuning | |||||
| 06 | Level sensor, rear | 1 | 01/2006 | 37146853759 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Wishbone, top | X | 01/2006 | 33326768724 | $141.95 | Shop at ECS Tuning | ||||
| 06 | Level sensor, rear | 1 | 01/2006 | 37146755006 | $92.32 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Wishbone, top | X | 01/2006 | 33326769020 | $132.98 | ENDED | Shop at ECS Tuning | |||
| 07 | Level sensor | 1 | 37146784696 | $85.28 | Shop at ECS Tuning | |||||
| 08 | Screw self-tapping | M6X16 ZNS3 | 3 | 07136801211 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Screw self-tapping | M8X21 | 2 | 01/2006 | 37146758384 | $1.85 | Shop at ECS Tuning | |||
| 09 | Screw self-tapping | M6X16 ZNS3 | 2 | 01/2006 | 07136801211 | $0.53 | Shop at ECS Tuning | |||
| 09 | Screw self-tapping | M6X16 ZNS3 | 2 | 01/2006 | 07136801211 | $0.53 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Wishbone, top | X | 01/2006 | 33326768724 | $141.95 | Shop at ECS Tuning | ||||
| 10 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
