Stabilizer, rear for BMW 7 Series E65 745i (2005)

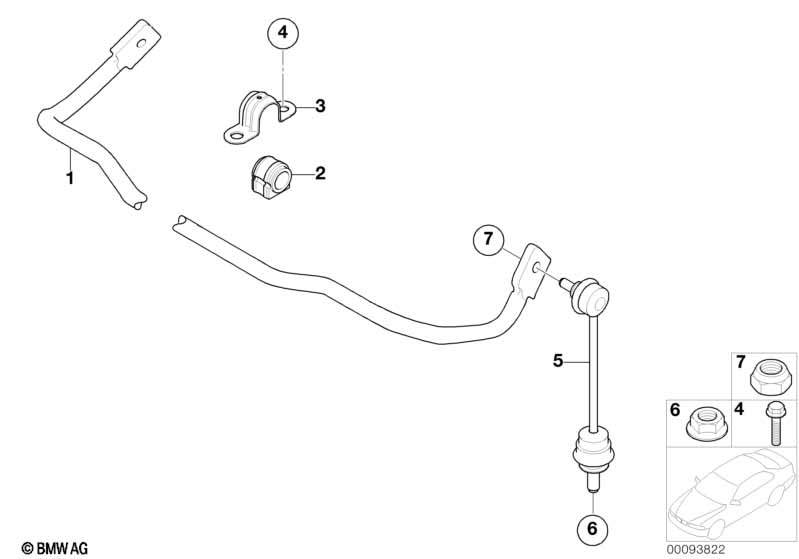

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=13,5MM | 1 | 33556757332 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=16MM | 1 | 03/2003 | 33556753922 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Stabilizer rubber mounting | D=13,5MM | 2 | 33556757333 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=16MM | 2 | 03/2003 | 33556753927 | ENDED | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 03/2003 | 83192405829 | Shop at ECS Tuning | ||||
| 03 | Bracket for left stabilizer bar | 2 | 33556779491 | $6.61 | Shop at ECS Tuning | |||||
| 04 | Hexagon screw with flange | M10X30-10.9ZNS3 | 4 | 07119904141 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Stabilizer link | 2 | 33506781538 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| -- | Hex nut wiht flange | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 07 | Hex nut wiht flange | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
