Output shaft for BMW 8 Series E31 850Ci (1993)

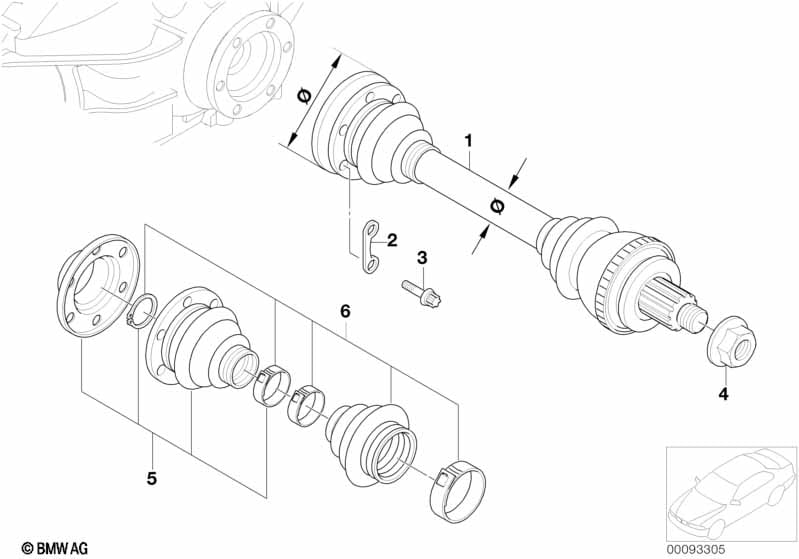

This Output shaft technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.

Output shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. output shaft LK=94MM/D=27MM 2 33211227018 $587.79 ENDED Shop at ECS Tuning
02 Reinforcement D=10,5MM/ZNS3 6 33207572719 $2.25 Shop at ECS Tuning
03 Torx screw M10X50 12 33211227279 $1.79 Shop at ECS Tuning
04 Collar nut M27X1,5 2 33411133785 $10.86 Shop at ECS Tuning
05 Repair kit bellows, interior 2 33217840673 $85.17 Shop at ECS Tuning
06 Repair kit bellows, exterior 2 33219067806 $69.10 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

REAR-AXLE-DRIVE REAR-AXLE-DRIVE
DRIVE FLANGE SUSPENSION/GASKET RING DRIVE FLANGE SUSPENSION/GASKET RING
FINAL DRIVE COVER/TRIGGER CONTACT FINAL DRIVE COVER/TRIGGER CONTACT
DRIVE FLANGE SUSPENSION/GASKET DRIVE FLANGE SUSPENSION/GASKET
REAR AXLE CARRIER REAR AXLE CARRIER
REAR AXLE SUPPORT/WHEEL SUSPENSION REAR AXLE SUPPORT/WHEEL SUSPENSION
SIDE SHAFT/WHEEL BEARINGS SIDE SHAFT/WHEEL BEARINGS
STABILIZER, REAR STABILIZER, REAR
REAR SPRING STRUT COIL SPRING AND PARTS REAR SPRING STRUT COIL SPRING AND PARTS

Frequently Asked Questions

What assembly is shown in the BMW 8 Series E31 850Ci Output shaft?
This technical diagram illustrates the Output shaft within the Rear Axle group for the 8 Series E31 850Ci produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Exch. output shaft (Part #33211227018).
Which models use the hardware listed in this Output shaft?
The hardware and components featured in the Output shaft are specific to the 8 Series E31 850Ci produced during 1993. These technical specifications ensure that parts like the Exch. output shaft (33211227018) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Output shaft assembly?
Each item in the Output shaft corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Exch. output shaft by locating its position on the schematic, which then links to the official BMW part number 33211227018 for the Rear Axle section.
