Rear spring strut mounting parts for BMW 5 Series E60 LCI 525xi (2009)

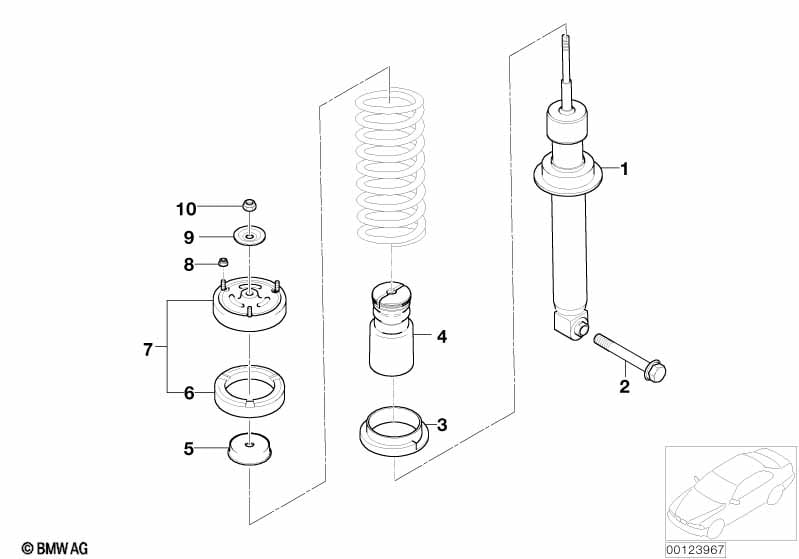

This Rear spring strut mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following part is absolutely vital for strut replacements: Additional shock absorber, rear |
|||||||||
| 01 | Spring strut, rear | 2 | 33526785984 | $360.68 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 03 | Spring pad lower | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 04 | Auxiliary shock absorber, rear | 2 | 33536761027 | $20.55 | Shop at ECS Tuning | |||||
| 05 | Supporting Cup | 2 | 33526758283 | $17.18 | Shop at ECS Tuning | |||||
| 06 | Spring pad upper | 2 | 33536753765 | $8.38 | Shop at ECS Tuning | |||||
| 07 | Guide support | 2 | 33526779611 | $61.80 | Shop at ECS Tuning | |||||
| 08 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Plate | 2 | 33526779415 | $0.87 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
