Stabilizer, rear for BMW 5 Series E60 LCI 525d (2008)

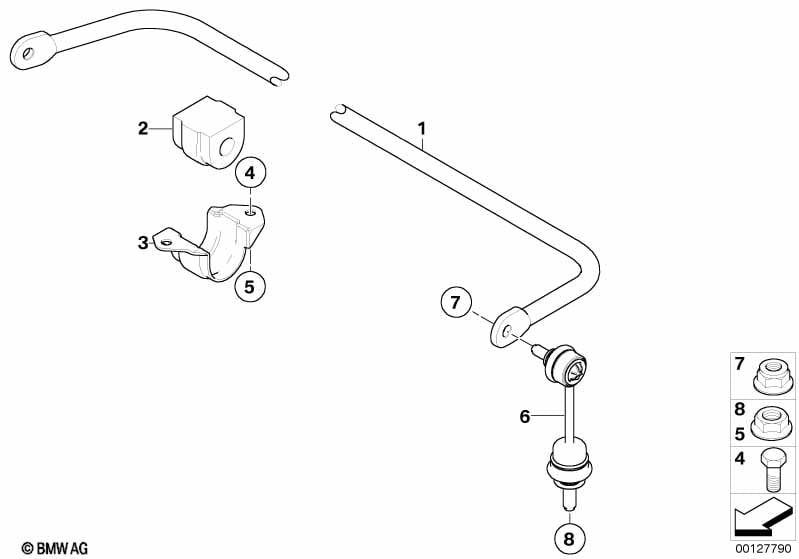

This Stabilizer, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilizer, rear | D=13,5MM | 1 | 33506770339 | $169.23 | Shop at ECS Tuning | ||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=14.5MM | 1 | 03/2006 | 33506770341 | $169.23 | +core | Shop at ECS Tuning | ||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 01 | Stabilizer, rear | D=16MM | 1 | 33557906822 | $169.23 | Shop at ECS Tuning | ||||
| 02 | Stabilizer rubber mounting | D=13,5MM | 2 | 33556766510 | $15.18 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| For vehicles with Sports suspension settings |
S226A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=14.5MM | 2 | 03/2006 | 33556761003 | $15.18 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 03/2006 | 83192405829 | Shop at ECS Tuning | ||||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 02 | Stabilizer rubber mounting | D=16MM | 2 | 33556761004 | $15.18 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Bracket for left stabilizer bar | 1 | 33556761729 | $7.58 | Shop at ECS Tuning | |||||
| 03 | Bracket for right stabilizer bar | 1 | 33556761730 | $7.58 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X30-Z1-10.9 | 4 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 05 | Self-locking collar nut | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Stabilizer link | 2 | 33506781540 | $43.88 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| -- | Hex nut wiht flange | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 07 | Hex nut wiht flange | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 08 | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
