Add-on parts/Dynamic Drive for BMW 6 Series E64 645Ci (2005)

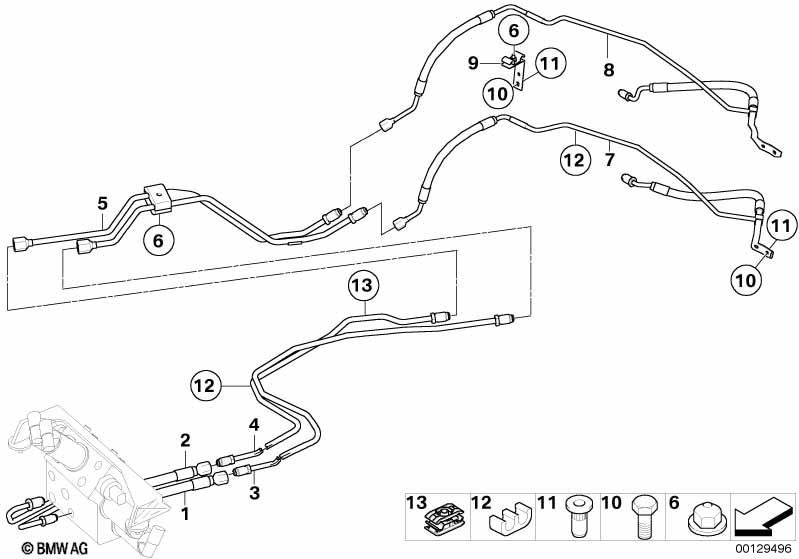

This Add-on parts/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | Pressure line, valve block | M14X1,5 | 1 | 37136761625 | $51.85 | Shop at ECS Tuning | ||||
| 02 | Pressure line, valve block | M14X1,5/M16X1,5 | 1 | 37136761626 | $51.85 | Shop at ECS Tuning | ||||
| 03 | Pressure hose assy | 1 | 37106780572 | $45.58 | Shop at ECS Tuning | |||||
| 04 | Pressure hose assy | 1 | 37106780573 | $45.58 | Shop at ECS Tuning | |||||
| 05 | Pressure hose assy | 1 | 07/2006 | 37106769932 | $201.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pressure line, motor | 1 | 07/2006 | 37106769936 | $129.37 | Shop at ECS Tuning | ||||
| -- | Pressure line, motor | 1 | 07/2006 | 37106769940 | $129.37 | Shop at ECS Tuning | ||||
| 05 | Pressure hose assy | M14X1,5 | 1 | 07/2006 | 37136766231 | $74.80 | Shop at ECS Tuning | |||
| not suitable for | ||||||||||
| -- | Pressure line, motor | X | 07/2006 | 37106769936 | $129.37 | Shop at ECS Tuning | ||||
| -- | Pressure line, motor | X | 07/2006 | 37106769940 | $129.37 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 07 | Pressure line, motor | 1 | 07/2006 | 37106769936 | $129.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pressure hose assy | 1 | 07/2006 | 37106769932 | $201.13 | Shop at ECS Tuning | ||||
| -- | Pressure line, motor | 1 | 07/2006 | 37106769940 | $129.37 | Shop at ECS Tuning | ||||
| 08 | Pressure line, motor | 1 | 07/2006 | 37106769940 | $129.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pressure hose assy | 1 | 07/2006 | 37106769932 | $201.13 | Shop at ECS Tuning | ||||
| -- | Pressure line, motor | 1 | 07/2006 | 37106769936 | $129.37 | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 37136761208 | $4.47 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X22-U1-ZNS3 | 4 | 07119905485 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Blind rivet nut, flat headed | M6 | 4 | 07146989330 | $1.25 | Shop at ECS Tuning | ||||
| 12 | Tubing support | SCHWARZ | 4 | 37206774051 | $1.38 | Shop at ECS Tuning | ||||
| 13 | Tubing support | 3 | 37206769202 | $6.83 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 645Ci Add-on parts/Dynamic Drive?
- This technical diagram illustrates the Add-on parts/Dynamic Drive within the Rear Axle group for the 6 Series E64 645Ci produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Pressure line, valve block (Part #37136761625).
- Which models use the hardware listed in this Add-on parts/Dynamic Drive?
- The hardware and components featured in the Add-on parts/Dynamic Drive are specific to the 6 Series E64 645Ci produced during 2005. These technical specifications ensure that parts like the Pressure line, valve block (37136761625) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Add-on parts/Dynamic Drive assembly?
- Each item in the Add-on parts/Dynamic Drive corresponds to the numbered list below the illustration. For the 6 Series E64 645Ci, you can identify the Pressure line, valve block by locating its position on the schematic, which then links to the official BMW part number 37136761625 for the Rear Axle section.
