Rear spring strut mounting parts for BMW 5 Series E61 LCI 530xi (2010)

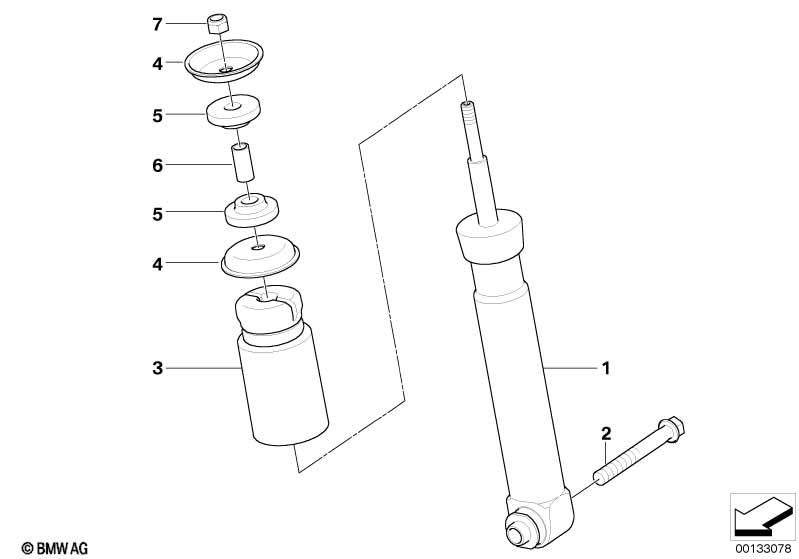

This Rear spring strut mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following part is absolutely vital for shock absorber replacements: Additional shock absorber, rear |
|||||||||
| 01 | Shock absorber, rear | 2 | 33526786525 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 03 | Auxiliary shock absorber, rear | 2 | 33526764268 | $20.55 | Shop at ECS Tuning | |||||
| 04 | Supporting Cup | 4 | 33526764264 | $2.63 | Shop at ECS Tuning | |||||
| 05 | Guide support | 4 | 33526769295 | $5.17 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 2 | 33526768838 | $1.59 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
