Levell.device, air spring and ctrl unit for BMW 5 Series E61 LCI 525i (2010)

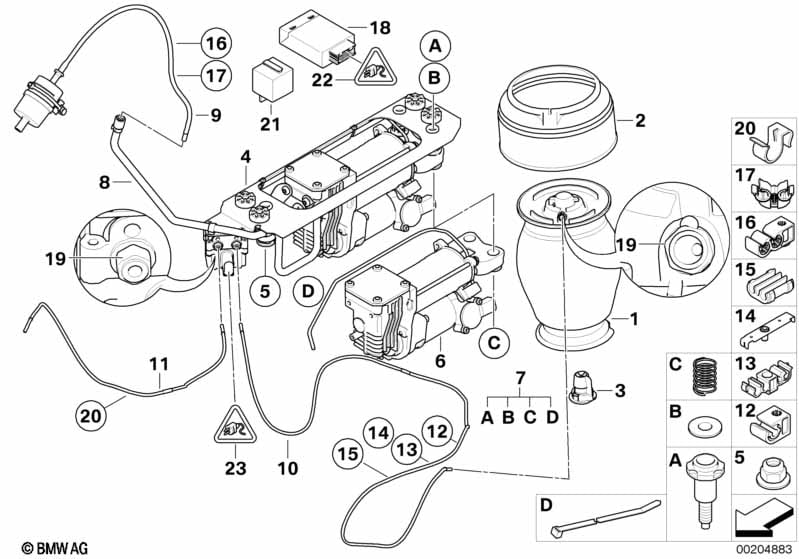

This Levell.device, air spring and ctrl unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pneumatic spring, rear | 2 | 37126765602 | $176.37 | Shop at ECS Tuning | |||||
| For vehicles with Sports suspension settings or M Sports suspension |
S226A=Yes S704A=Yes |
|||||||||
| 01 | Pneumatic spring, rear | 2 | 37126765603 | +core | Shop at ECS Tuning | |||||
| 02 | Protective boot | 2 | 37126766667 | $7.38 | Shop at ECS Tuning | |||||
| 03 | Retaining pin f pneumatic spring | 2 | 37106762729 | $2.68 | Shop at ECS Tuning | |||||
| 04 | Air supply device | 1 | 37106789937 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| Important! Before ordering the air- supply system please consult PUMA Measure No. AG 21805843. |
||||||||||
| 05 | Hex nut | 4 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 06 | Compressor, pneumatic system | 1 | 37106793778 | $709.62 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| -- | Mounting parts set | 1 | 37206793219 | $6.05 | Shop at ECS Tuning | |||||
| 07 | Mounting parts set | 1 | 37206793219 | $6.05 | Shop at ECS Tuning | |||||
| 08 | Hose | 1 | 37206777361 | $90.14 | Shop at ECS Tuning | |||||
| 09 | Vent pipe | 1 | 37206769083 | $41.50 | Shop at ECS Tuning | |||||
| 10 | Pipe, rear left air spring | 1 | 37236765097 | $11.22 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pipe, rear right air spring | 1 | 37236765098 | $11.22 | Shop at ECS Tuning | |||||
| 12 | Brake pipe bracket | 2 | 34326855500 | Shop at ECS Tuning | ||||||
| 13 | Pipe clip | 3 | 16136753249 | $0.93 | Shop at ECS Tuning | |||||
| For vehicles with Equipment for leaded fuel |
S199A=Yes |
|||||||||
| 13 | Pipe clip | 1 | 16136753249 | $0.93 | Shop at ECS Tuning | |||||
| 14 | Bracket | 3 | 34306773697 | $0.62 | Shop at ECS Tuning | |||||
| For vehicles with Equipment for leaded fuel |
S199A=Yes |
|||||||||
| 14 | Bracket | 1 | 34306773697 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Spacer holder | 1 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 16 | Wire clip, dual | 1 | 34306784201 | $1.63 | Shop at ECS Tuning | |||||
| 17 | Brake pipe bracket | 1 | 34326759039 | $0.87 | Shop at ECS Tuning | |||||
| 18 | Air supply control unit | 1 | 37146784314 | $362.17 | Shop at ECS Tuning | |||||
| 19 | Screwed connection | D=4MM | 4 | 37221092403 | $3.00 | Shop at ECS Tuning | ||||
| 20 | Clamp | 1 | 61131382377 | $0.62 | Shop at ECS Tuning | |||||
| 21 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 22 | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| 23 | Socket housing | 1 | 12527514236 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 4,0 MM? | 10 | 12527505636 | $0.50 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 4MM² | 1 | 12527514562 | $0.57 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
