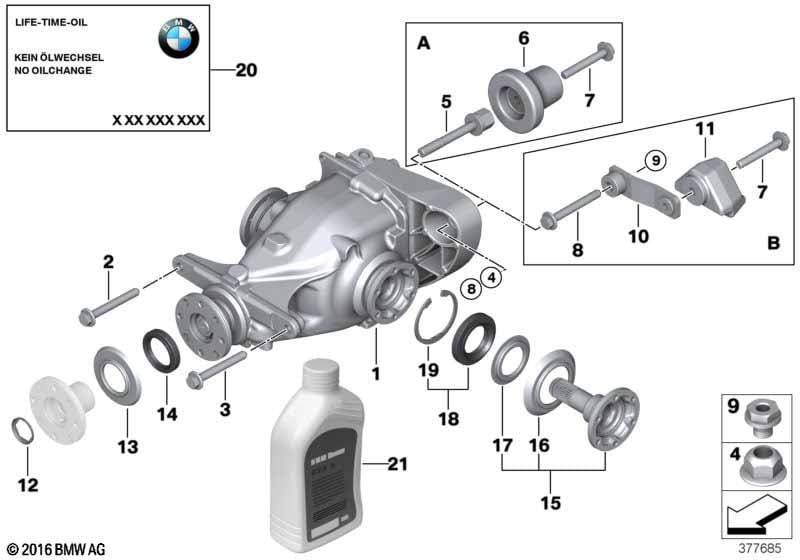

Differential-drive/output for BMW 3 Series E90 320d (2007)
This Differential-drive/output technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear-axle-drive | I=2,56 | 1 | 33107566218 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| only applies to version "A" | ||||||||||
| 04 | Combination nut | M14X1,5-10ZNS3 | 1 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M14X1,5X108ZNS3 | 1 | 33176780457 | $12.12 | Shop at ECS Tuning | ||||
| Convert to Version 'B' for replacement. | ||||||||||
| 06 | Vibration absorber | 1 | 33176767852 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M12X1,5X85-8.8 | 1 | 33176767983 | $2.34 | Shop at ECS Tuning | ||||
| only applies to condition "B" | ||||||||||
| 08 | Collar screw | M14X1,5X112 | 1 | 33306785433 | $2.57 | Shop at ECS Tuning | ||||
| 09 | Threaded bush | M14X1,5 ZNS3 | 1 | 33326770288 | $4.48 | Shop at ECS Tuning | ||||
| 10 | Bracket, vibration absorber | 1 | 33176773193 | $25.89 | Shop at ECS Tuning | |||||
| 11 | Vibration absorber | 48HZ | 1 | 33176783545 | Shop at ECS Tuning | |||||
| 12 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| Important! Drive flange and nut must not be replaced. |
||||||||||
| 13 | dustcover plate, small | 1 | 33121213903 | $1.30 | Shop at ECS Tuning | |||||
| 14 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 15 | Drive flange output | LK=86MM/M10 | 2 | 33131428124 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 16 | Dust guard ring, outer | D=68,8 | 2 | 33131428097 | $1.57 | Shop at ECS Tuning | ||||
| 17 | Dust guard ring, inner | D=60 | 2 | 33131214298 | $1.50 | Shop at ECS Tuning | ||||
| 18 | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| 19 | Lock Ring | D=22,4 | 2 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| 20 | Stick-on label | DE, EN | 1 | 01399791197 | $4.25 | Shop at ECS Tuning | ||||
| 21 | BMW synthetic OSP | 1L | X | 07/2011 | 83222365987 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
