Rear axle carrier for BMW 3 Series E90 320d (2008)

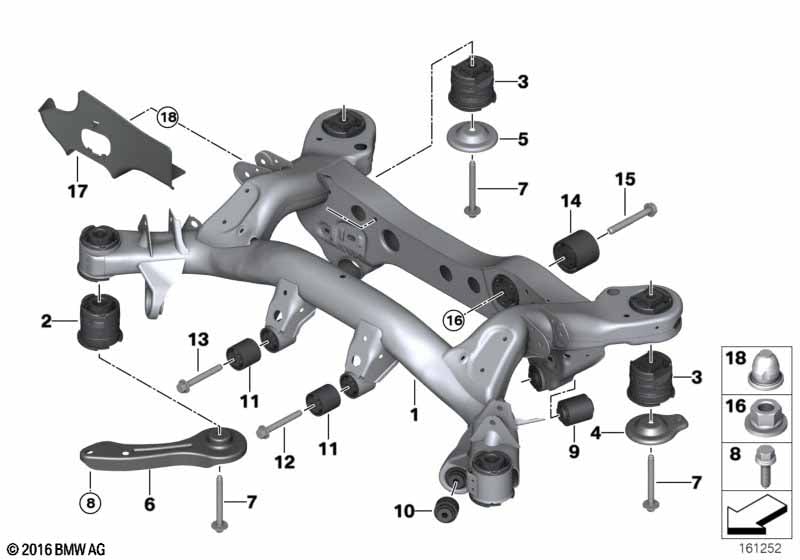

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33316783714 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Rear axle carrier | 1 | 33316783715 | $751.57 | Shop at ECS Tuning | |||||
| 02 | RUBBER MOUNTING front | 2 | 33316758259 | $54.46 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | RUBBER MOUNTING rear | 2 | 33316768645 | $54.46 | Shop at ECS Tuning | |||||
| 04 | Stopper, rear | 1 | 08/2024 | 33316794866 | Shop at ECS Tuning | |||||
| 04 | Thrust washer, rear | 1 | 33308858483 | Shop at ECS Tuning | ||||||
| 05 | Stopper, rear | 1 | 08/2024 | 33316794866 | Shop at ECS Tuning | |||||
| 05 | Thrust washer, rear | 1 | 33308858483 | NoS | Shop at ECS Tuning | |||||
| 06 | Push rod left | 1 | 33326766053 | $33.91 | Shop at ECS Tuning | |||||
| 06 | Push rod right | 1 | 33326766054 | $33.91 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt with washer | M12X127-10.9 | 4 | 06/2011 | 33326760340 | $3.60 | Shop at ECS Tuning | |||
| 08 | Hex screw with collar | M10X33-10.9 | 4 | 04/2011 | 33326768354 | $1.14 | Shop at ECS Tuning | |||
| 09 | Rubber mount, roll-over strut | 2 | 33326770829 | $26.77 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 33326763092 | $16.71 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 11 | RUBBER MOUNTING front | 2 | 33176760287 | $18.93 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 14 | RUBBER MOUNTING rear | 1 | 33316769376 | $54.46 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 14 | RUBBER MOUNTING rear | 1 | 33176770866 | $44.38 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M14X1,5X108ZNS3 | 1 | 33176780457 | $12.12 | Shop at ECS Tuning | ||||
| Fits only if vehicle has been converted to vibration damper bracket 6 773 193. |
||||||||||
| 15 | Collar screw | M14X1,5X112 | 1 | 33306785433 | $2.57 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Threaded bush | M14X1,5 ZNS3 | X | 33326770288 | $4.48 | Shop at ECS Tuning | ||||
| -- | Bracket, vibration absorber | X | 33176773193 | $25.89 | Shop at ECS Tuning | |||||
| 16 | Combination nut | M14X1,5-10ZNS3 | 1 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| Fits only if vehicle has been converted to vibration damper bracket 6 773 193. |
||||||||||
| 16 | Threaded bush | M14X1,5 ZNS3 | 1 | 33326770288 | $4.48 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Bracket, vibration absorber | X | 33176773193 | $25.89 | Shop at ECS Tuning | |||||
| -- | Collar screw | M14X1,5X112 | X | 33306785433 | $2.57 | Shop at ECS Tuning | ||||
| 17 | Stone chip right | 1 | 03/2007 | 33316775537 | $5.87 | Shop at ECS Tuning | ||||
| 17 | Stone chip left | 1 | 03/2007 | 33316775538 | $5.87 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 17 | Stone chip left | 1 | 03/2007 | 33316775539 | $5.87 | Shop at ECS Tuning | ||||
| 18 | Snap-lock coupling | 6 | 03/2007 | 46637691016 | $1.54 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
