Differential-drive/output for BMW 3 Series E91 320d (2006)

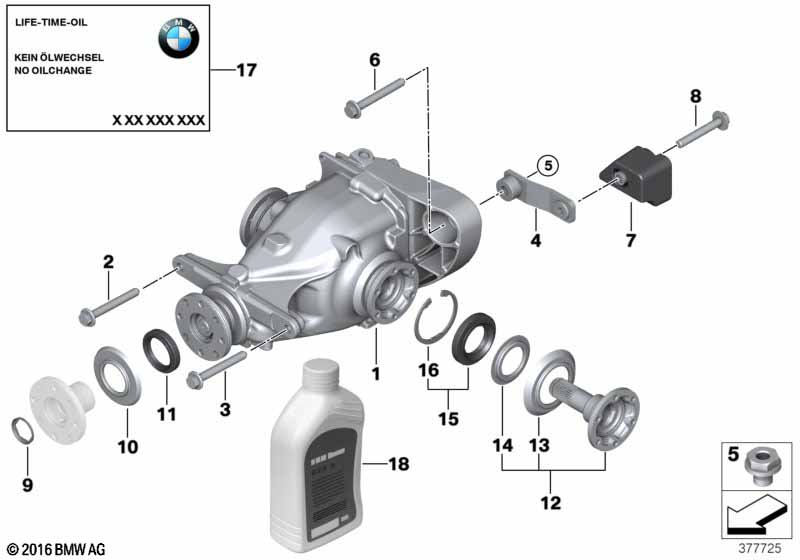

This Differential-drive/output technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear-axle-drive | I=2,56 | 1 | 33107566218 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Rear-axle-drive | I=3,15 | 1 | 33107591022 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M12X1,5X100 | 1 | 33176760343 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Bracket, vibration absorber | 1 | 33176773193 | $25.89 | Shop at ECS Tuning | |||||
| 05 | Threaded bush | M14X1,5 ZNS3 | 1 | 33326770288 | $4.48 | Shop at ECS Tuning | ||||
| 06 | Collar screw | M14X1,5X112 | 1 | 33306785433 | $2.57 | Shop at ECS Tuning | ||||
| 07 | Vibration absorber | 48HZ | 1 | 33176783545 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex bolt with washer | M12X1,5X85-8.8 | 1 | 33176767983 | $2.34 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 07 | Vibration absorber | 61HZ | 1 | 33176773194 | +core | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M12X1,5X77- 8.8 | 1 | 33326769471 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Vibration absorber | 50HZ | X | 33176769555 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M12X1,5X85-8.8 | 1 | 33176767983 | $2.34 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Vibration absorber | 48HZ | X | 33176783545 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Hex bolt with washer | M12X1,5X77- 8.8 | 1 | 33326769471 | Shop at ECS Tuning | |||||
| 09 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| Important! Drive flange and nut must not be replaced. |
||||||||||
| 10 | dustcover plate, small | 1 | 33121213903 | $1.30 | Shop at ECS Tuning | |||||
| 11 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 12 | Drive flange output | LK=86MM/M10 | 2 | 33131428124 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 13 | Dust guard ring, outer | D=68,8 | 2 | 33131428097 | $1.57 | Shop at ECS Tuning | ||||
| 14 | Dust guard ring, inner | D=60 | 2 | 33131214298 | $1.50 | Shop at ECS Tuning | ||||
| 15 | Shaft seal with lock ring | TYP 188 | 2 | 33107505604 | $18.30 | Shop at ECS Tuning | ||||
| 16 | Lock Ring | D=22,4 | 2 | 33131214961 | $0.29 | Shop at ECS Tuning | ||||
| 17 | Stick-on label | DE, EN | 1 | 01399791197 | $4.25 | Shop at ECS Tuning | ||||
| 18 | BMW synthetic OSP | 1L | X | 83222365987 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
